Removal & Installation

NOTE:  If you are only removing the dial(s), it is not necessary to remove the HVAC control unit assembly.

• 1. Driver's Inner Dashboard Trim Panel - Remove
• 2. HVAC Control Unit Assembly - Remove

  Courtesy of HONDA, U.S.A., INC.

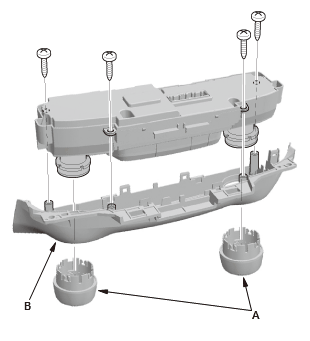

• 3. HVAC Control Unit Panel - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the dials (A)

  2. Remove the HVAC control unit panel (B).

• 4. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  Run the self-diagnostic function to confirm that there are no problems in the system.
