Removal & Installation

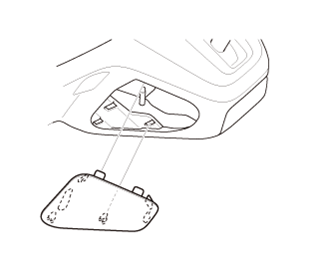

1. Center Maintenance Cover - Remove

Courtesy of HONDA, U.S.A., INC.

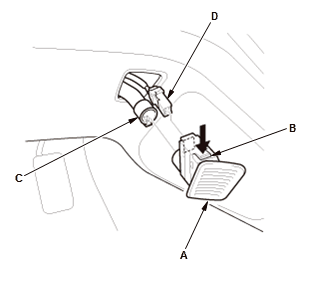

2. Humidity/In-Car Temperature Sensor - Remove

Courtesy of HONDA, U.S.A., INC.

1. Push out the humidity/in-car temperature sensor (A) by press the tab (B) from back

2. Disconnect the aspirator hose (C) and the connector (D).
3. All Removed Parts - Install the parts in the reverse order of removal.
