Removal & Installation

NOTE:

• Set the VENT position before removing the motor.

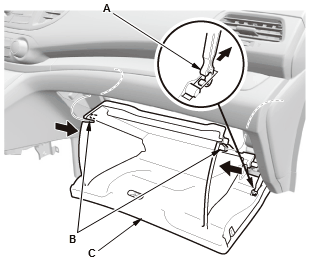

• 1. Glove Box - Move

  Courtesy of HONDA, U.S.A., INC.

  1. Detach the glove box damper (A), and release both glove box stops (B) by pushing them in, then let glove box (C) hang down.

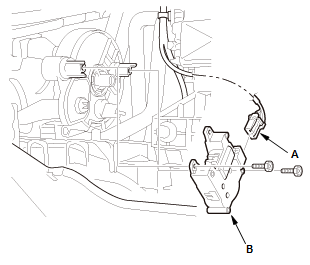

• 2. Mode Control Motor - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector (A)

  2. Remove the mode control motor (B).

• 3. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:  After installation, make sure the motor runs smoothly.
