Removal & Installation

NOTE:  Install the dryer desiccant as quickly as possible to prevent the system from absorbing moisture from the air.

• 1. A/C Condenser - Remove
• 2. Dryer Desiccant - Remove

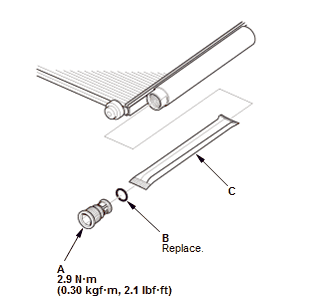

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the cap (A) and the O-ring (B)

  2. Remove the dryer desiccant (C).

• 3. All Removed Parts - Install the parts in the reverse order of removal, and note these items:
  • Install the dryer desiccant as quickly as possible to prevent the system from absorbing moisture from the air.
  • If you are installing a new dryer desiccant, add the appropriate refrigerant oil for the A/C compressor which installed to the vehicle .
  • New O-rings should be used at each fitting. Prior to installation, apply a thin coat of the same refrigerant oil used in the A/C compressor . Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
  • Install the cap to the specified torque. It is made of plastic and can be easily stripped.
