Removal & Installation

NOTE:

• Set the FRESH position before removing the motor.

• 1. Blower Unit - Remove

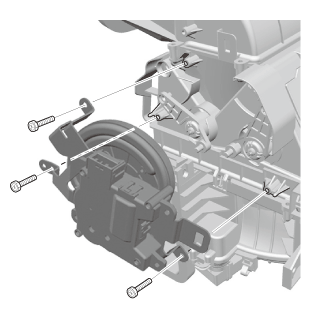

• 2. Recirculation Control Motor - Remove

  Courtesy of HONDA, U.S.A., INC.

• 3. All Removed Parts - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install the parts in the reverse order of removal, and note these items:

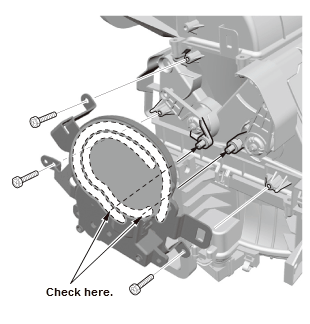

  • Make sure the damper lever pins in the motor lever are visible through the holes.
  • After installation, make sure the motor runs smoothly.
