Removal & Installation

NOTE:  Be careful not to damage the sensor and the dashboard.

• 1. Sunlight Sensor - Remove

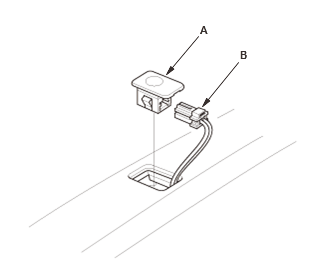

  2P connector

  Courtesy of HONDA, U.S.A., INC.

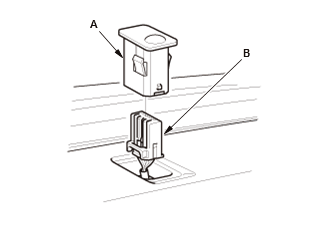

  7P connector

  Courtesy of HONDA, U.S.A., INC.

  1. Pull out the sunlight sensor (A)

  2. Disconnect the sunlight sensor connector (B).

• 2. All Removed Parts - Install the parts in the reverse order of removal.
