Engine Oil Filter Feed Pipe Removal & Installation: Installation

1. Oil Filter Feed Pipe - Install

Courtesy of HONDA, U.S.A., INC.

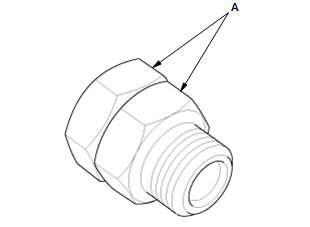

1. Install the two 20 x 1.5 mm nuts (A) onto the oil filter feed pipe. Hold the nut with a wrench, then tighten the other nut.

Courtesy of HONDA, U.S.A., INC.

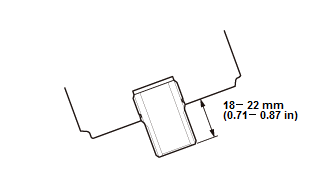

2. Install the oil filter feed pipe in its specified height range shown

3. Remove the nuts from the oil filter feed pipe.
