A/C System Description - Overview

The air conditioning system regulates temperature air outlet by mixing cold and warm air in an appropriate ratio. The heater core and evaporator core are installed in the heater unit that has the air mix damper and the mode control damper. The blower unit is composed of a blower motor, the recirculation control damper and the air conditioner filter. The blower unit is connected to the heater unit by the duct integral with the blower unit.

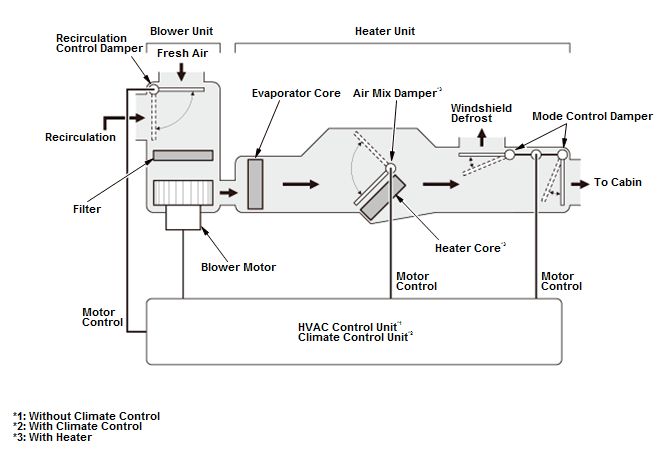

System Diagram

Courtesy of HONDA, U.S.A., INC.

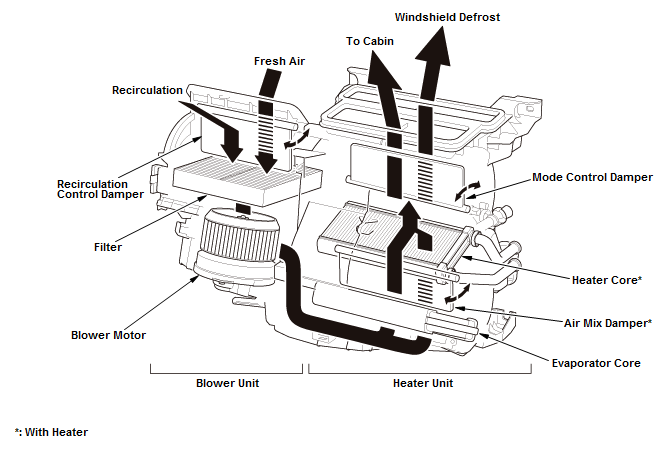

Air Flow Diagram

NOTE:  This illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.

Courtesy of HONDA, U.S.A., INC.

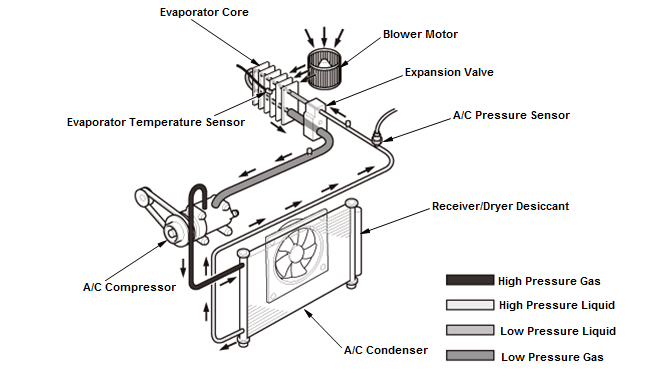

Refrigerant Cycle

Courtesy of HONDA, U.S.A., INC.
