Climate Control System Description - Sunlight Sensor

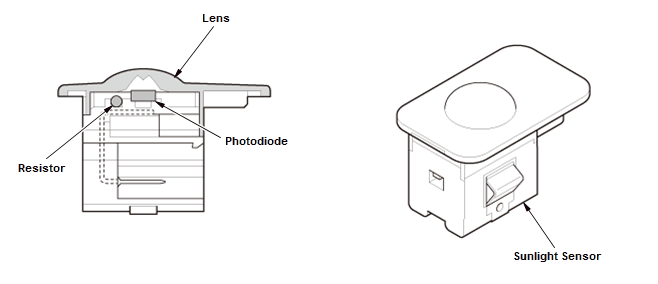

The sunlight sensor is attached to the upper face of the instrument panel. The sunlight sensor uses a photodiode-type optical sensor which changes current in proportion to the sunlight intensity. The climate control unit reads the voltage fluctuation of the sunlight sensor.
NOTE: This illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.
