Sunlight Sensor Test: Test

NOTE:  Before testing the sensor, check for climate control DTCs.

• 1. Sunlight Sensor - Test

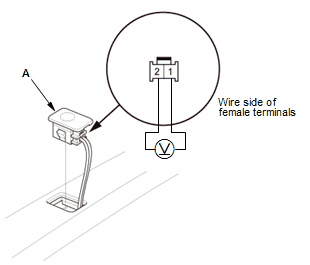

  2P connector

  Courtesy of HONDA, U.S.A., INC.

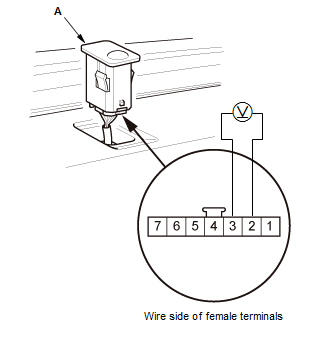

  7P connector

  Courtesy of HONDA, U.S.A., INC.

  1. Pull out the sunlight sensor (A)

  2. Turn the vehicle to the ON mode

  3. Measure the voltage between (+) probe on terminal No. 2 and (-) probe on terminal No. 1 (2P connector) or No. 3 (7P connector) connector connected.

  NOTE:  The voltage readings will not change under the light of a flashlight or a fluorescent lamp.

  Voltage should be:

  • 3.56 V with no sunlight or the sensor covered up
  • Less than 3.56 V with sunlight on the sensor (depending on sunlight intensity)

  4. If the voltage is not as specified, replace the sunlight sensor .
