A/C Compressor Clutch Overhaul: Installation

NOTE:

• When replacing the field coil, check that the new coil has the correct resistance .
• Install the field coil with the wire side facing down, and align the boss on the field coil with the hole in the A/C compressor.
• If the clutch surface is oil soaked, check the compressor front seal for leakage. Installing a new clutch assembly on a leaking compressor will damage the new clutch assembly friction surfaces.
• Clean the pulley and the A/C compressor friction surfaces with contact cleaner or other non-petroleum solvent.
• Install new snap rings, note the installation direction, and make sure they are fully seated in the grooves.
• Make sure that the pulley turns smoothly after it's reassembled.
• Route and clamp the wires properly to prevent damage by the pulley.
• After reinstallation, cycle the A/C compressor clutch approximately 20 times by running the engine at 1, 500-2, 000 min-1 (rpm) and setting the A/C system to MAX COOL. This procedure seats the clutch sliding surfaces, and increases clutch torque capacity.

• 1. A/C Compressor Field Coil - Install

  Courtesy of HONDA, U.S.A., INC.

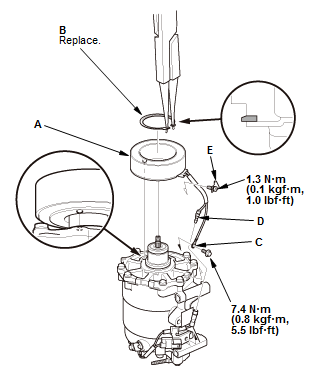

  1. Install the field coil (A).

  NOTE:  Be careful not to damage the field coil and A/C compressor

  2. Install the new snap ring (B) with the snap ring pliers

  3. Install the field coil ground terminal (C)

  4. Connect the field coil connector (D)

  5. Install the holder (E).

• 2. A/C Compressor Pulley - Install

  Courtesy of HONDA, U.S.A., INC.

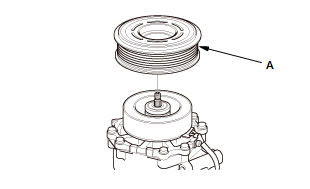

  1. Install the pulley (A).

  NOTE:  Be careful not to damage the pulley or the A/C compressor.

  Courtesy of HONDA, U.S.A., INC.

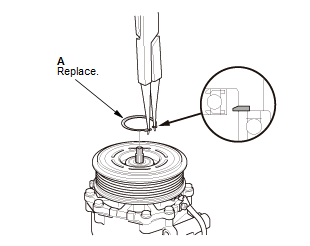

  2. Install the new snap ring (A) with the snap ring pliers.

• 3. A/C Compressor Armature Plate - Install

  Courtesy of HONDA, U.S.A., INC.

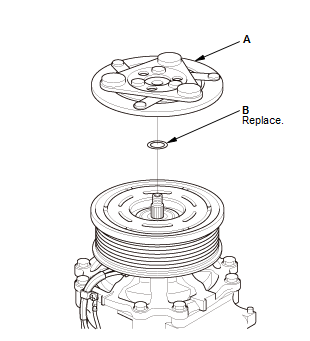

  1. Install the armature plate (A) with a new shim(s) (B).

  NOTE:

  • The shims are available in four thicknesses: 0.1 mm, 0.2 mm, 0.4 mm, and 0.5 mm.
  • When remove the armature plate, place a trial stack of shims, 1 mm total thickness, on the A/C compressor shaft. Install the armature plate, and check its clearance. If the clearance is not with specification, add or subtract shims as needed.
  Fig 1: A/C Clutch With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

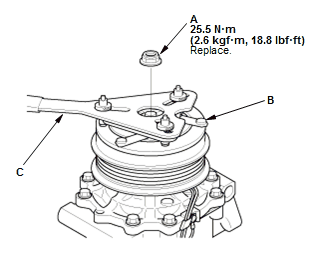

  2. Install the new center nut (A) while holding the armature plate (B) with the A/C clutch holder (C).

  If the clutch needs adjustment, increase or decrease the number and thickness of shims as necessary, then reinstall the armature plate, and recheck its clearance .
