A/C System Contamination Inspection: Replacement

NOTE:  The parts illustration are sample. External appearance may vary from model to model.

• 1. A/C Components - Replace

  Courtesy of HONDA, U.S.A., INC.

  Repair Procedure A

  Replace the following parts:

  • A/C compressor (A)
  • Discharge hose (B)

  Courtesy of HONDA, U.S.A., INC.

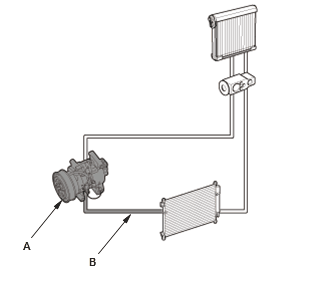

  Repair Procedure B  Replace the following parts: A/C compressor (A) Discharge hose (B) A/C condenser (C)

  Courtesy of HONDA, U.S.A., INC.

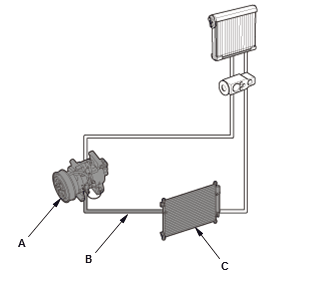

  Repair Procedure C  Replace the following parts: A/C compressor (A) Discharge hose (B) A/C condenser (C) Receiver line (D)

  Courtesy of HONDA, U.S.A., INC.

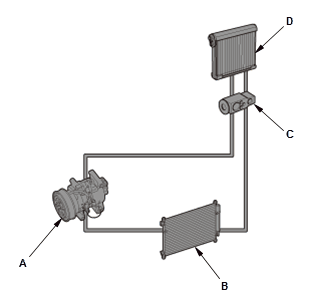

  Repair Procedure D  Replace the following parts: A/C compressor (A) A/C condenser (B) Expansion valve (C) Evaporator core (D) All A/C hoses and lines
