Run the Sensor Input Display Mode

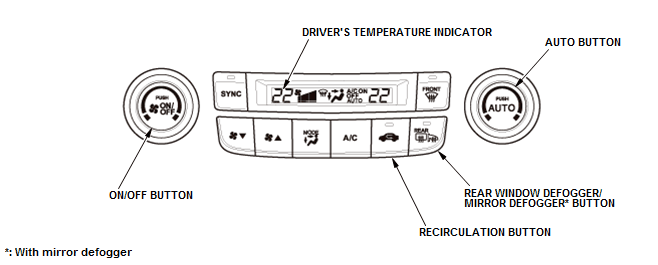

1. Press and hold both the AUTO and RECIRCULATION buttons, then start the engine.

Courtesy of HONDA, U.S.A., INC.

2. Release both buttons. The driver's temperature indicator will flash the sensor number and then the value for that sensor. Record the value displayed

3. To advance to the next sensor, press the REAR WINDOW DEFOGGER/MIRROR DEFOGGER* button.

*: With mirror defogger

NOTE:

The sensor values will be displayed in degrees Celsius (°C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (°F).
If the sensor value displays "Er", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.
For unsupported items, "--" will be shown on the display.

Sensor	Item	Displayed Value
1	Mode positioning	%
2	In-car temperature	°C
3	Outside air temperature	°C
4	Solar radiation sensor value: dark = 00, flashlight = 04, cloudy = 10, sunny = 65	10 kcal/m² .h
5	Evaporator outlet air temperature	°C
6	Driver's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
7	Passenger's air mix opening (low value indicates cooler air distribution, higher value indicates warmer air distribution)	% of opening
8	Recirculation control opening	% of opening
9	Vehicle speed (vehicle must be driven to display speed)	10 km/h
A	Engine coolant temperature	°C
b	Vent temperature air out (TAO) (driver's)	°C
C	Humidity sensor value	%
d	Illumination duty	Step
E	Heater core temperature
F	Auto idle stop prohibit flag
G	Auto idle stop permission time	sec
H	Software version

Celsius to Fahrenheit Conversion Table

°C	°F	°C	°F	°C	°F	°C	°F	°C	°F
0	32	10	50	20	68	30	86	40	104
1	34	11	52	21	70	31	88	41	106
2	36	12	54	22	72	32	90	42	108
3	37	13	55	23	73	33	91	43	109
4	39	14	57	24	75	34	93	44	111
5	41	15	59	25	77	35	95	45	113
6	43	16	61	26	79	36	97	46	115
7	45	17	63	27	81	37	99	47	117
8	46	18	64	28	82	38	100	48	118
9	48	19	66	29	84	39	102	49	120

°C	°F	°C	°F	°C	°F	°C	°F	°C	°F
50	122	60	140	70	158	80	176	90	194
51	124	61	142	71	160	81	178	91	196
52	126	62	144	72	162	82	180	92	198
53	127	63	145	73	163	83	181	93	199
54	129	64	147	74	165	84	183	94	201
55	131	65	149	75	167	85	185	95	203

°C	°F	°C	°F	°C	°F	°C	°F	°C	°F
56	133	66	151	76	169	86	187	96	205
57	135	67	153	77	170	87	189	97	207
58	136	68	154	78	172	88	190	98	208
59	138	69	156	79	174	89	192	99	210

Alphanumeric Conversion Table

Display Reading (Alphanumeric)	°C	°F	%
A1 thru A9	-1 thru -9	30 thru 16	-1 thru -10
B0 thru B9	-10 thru -19	14 thru -2	-10 thru -19
C0 thru C9	-20 thru -29	-4 thru -20	-20 thru -29
D0 thru D9	-30 thru -39	-22 thru -38	-30 thru -39
E0 thru E9	-40 thru -49	-40 thru -56	-40 thru -49
E9	-50 or less	-58 or less	-50 or less

Alphanumeric Conversion Table (Mode Positioning)

Display Reading (Alphanumeric)	Mode Position
0	VENT
18	HEAT/VENT-1
32	HEAT/VENT-2
54	HEAT
69	HEAT/DEF-1
84	HEAT/DEF-2
F0	DEF
