Honda
>>
2016
>>
CR-V EX, Eng CD K24W9, FWD
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
HVAC System - Testing & Troubleshooting
>>
Circuit Diagram
>>

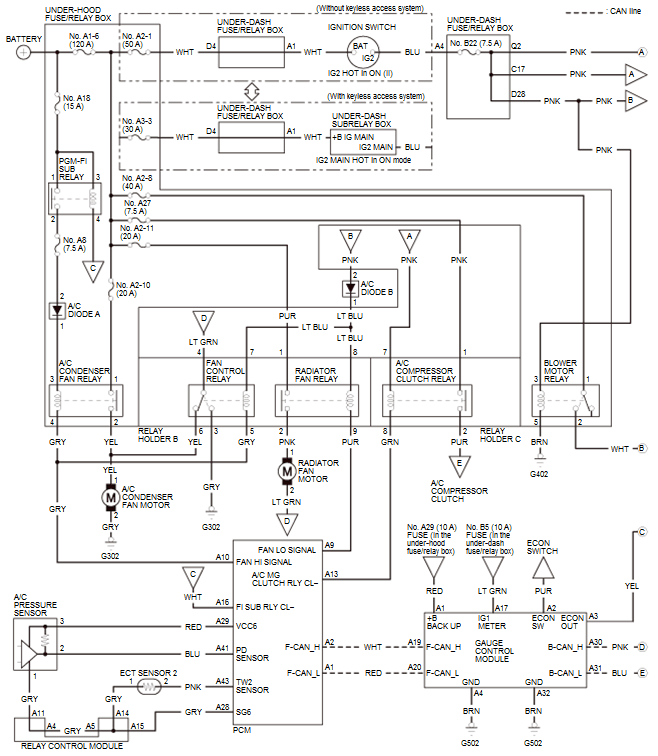

Heating and A/C Systems Circuit Diagram

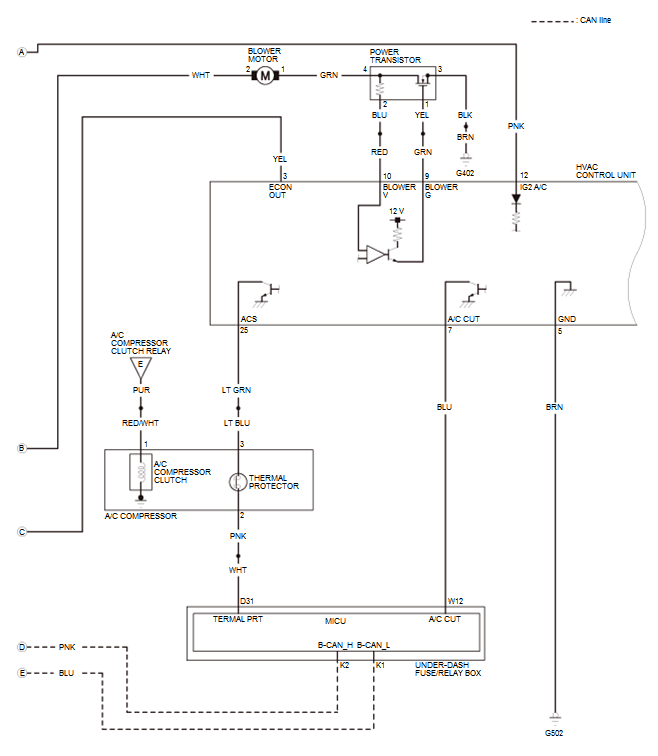

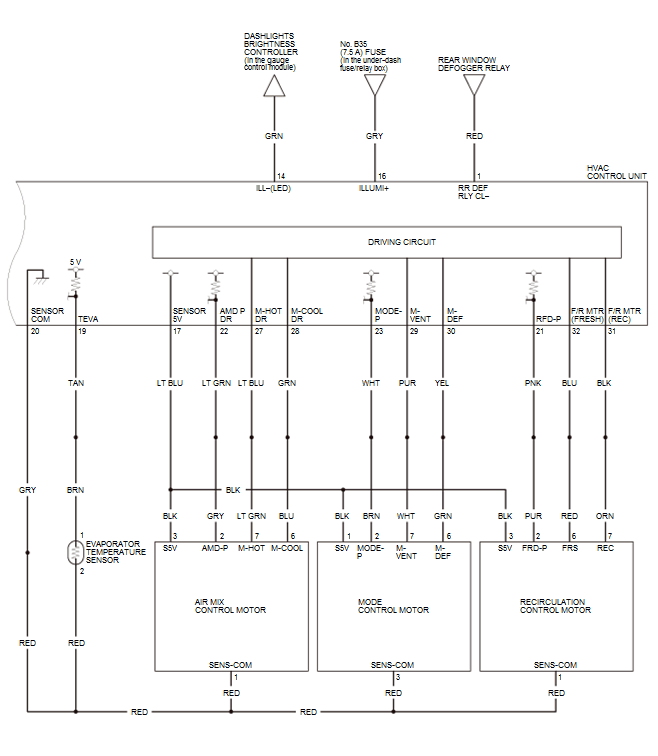

Heating and A/C Systems Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
