Climate Control System Component Location Index

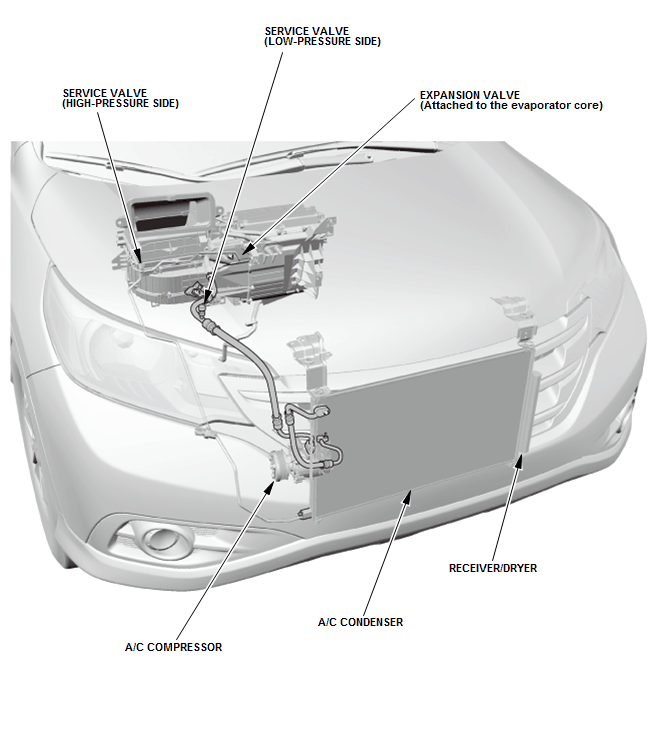

GHH50282

Courtesy of HONDA, U.S.A., INC.

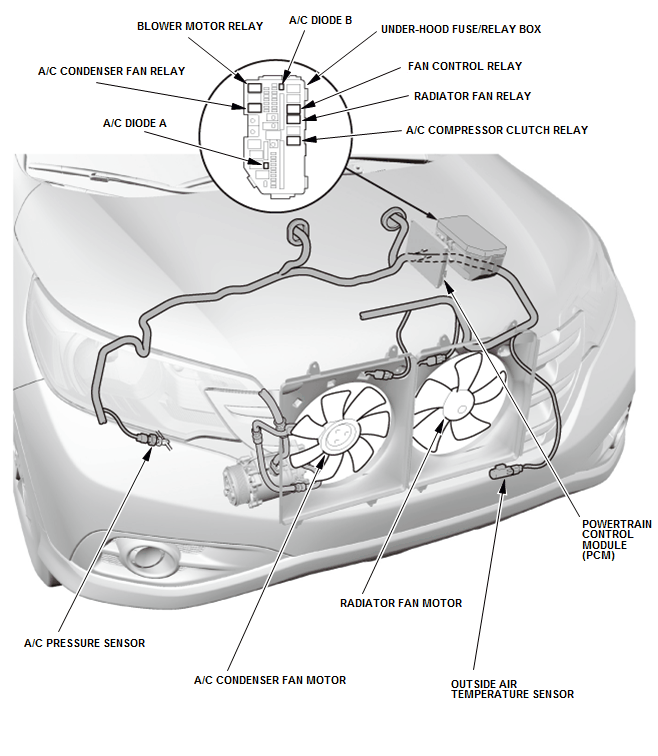

GHH50283

Courtesy of HONDA, U.S.A., INC.

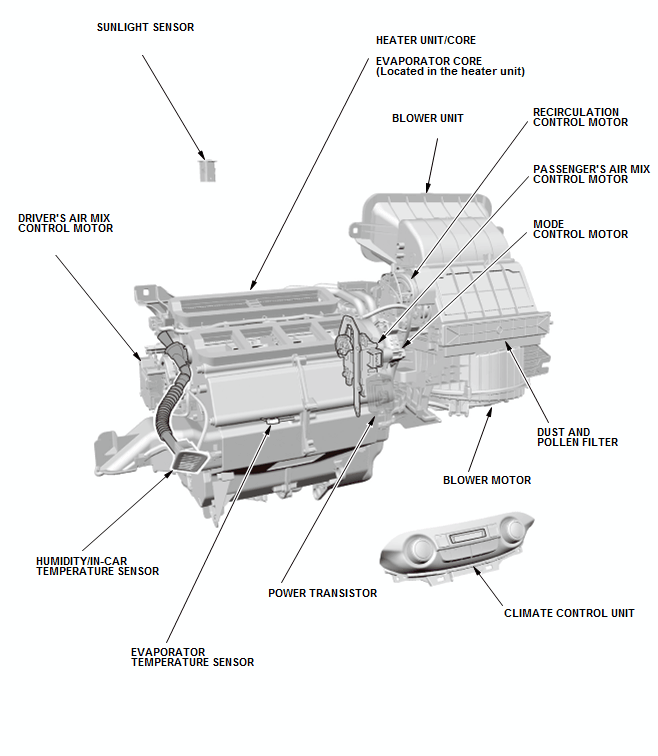

GHH50284

Courtesy of HONDA, U.S.A., INC.
