Heating and A/C Systems Component Location Index

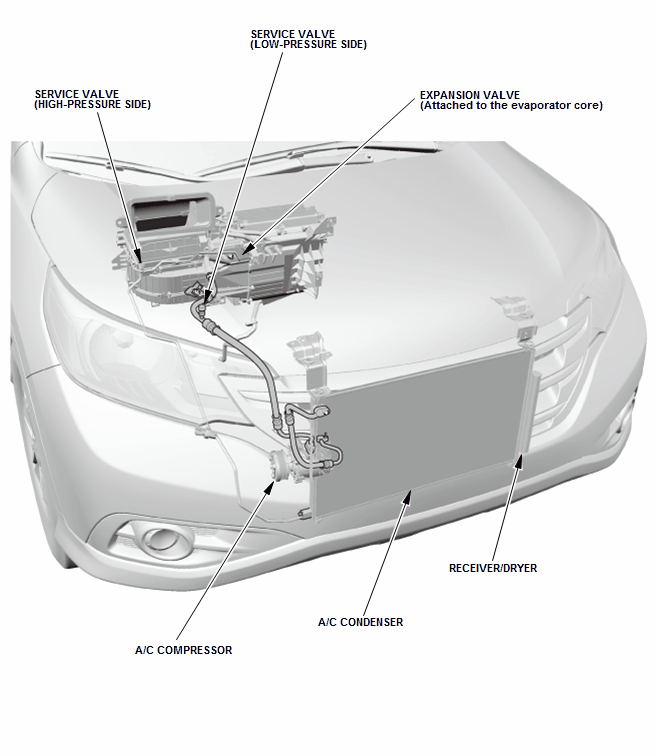

GHH50285

Courtesy of HONDA, U.S.A., INC.

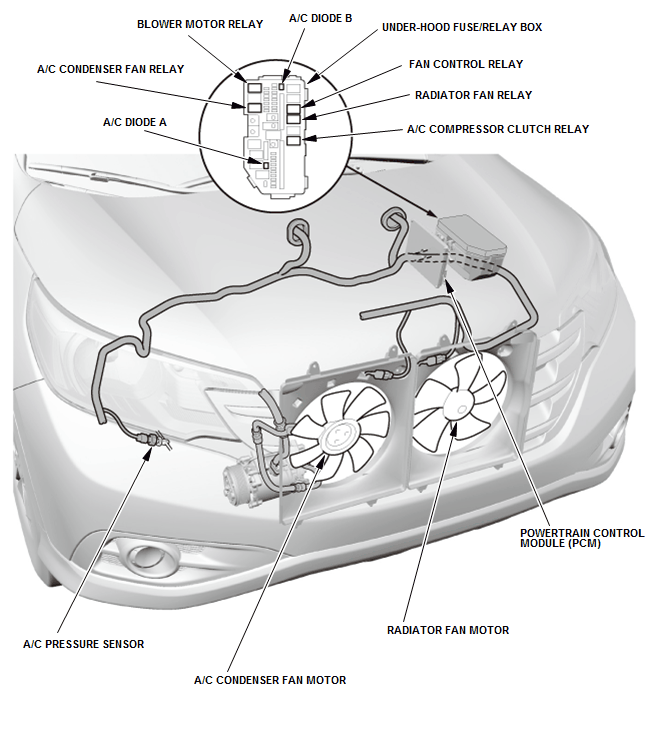

GHH50286

Courtesy of HONDA, U.S.A., INC.

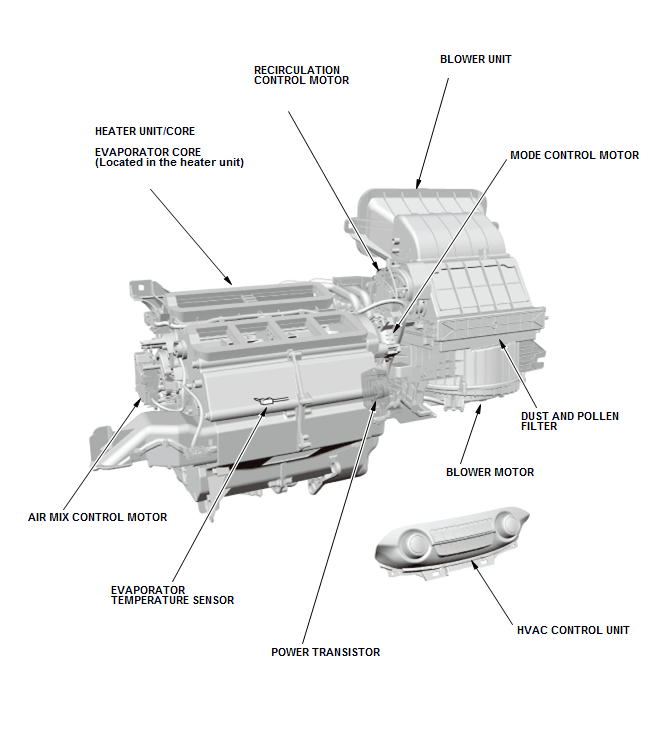

GHH50287

Courtesy of HONDA, U.S.A., INC.
