DTC B1234 (41): A Short in the Air Mix Control Motor Circuit (Driver's)

NOTE:  If other short circuit DTCs are indicated at the same time, there may be an open or short to body ground in the power (5 V) circuit.

• 1. Problem verification:

  1. Clear the DTC with the HDS.

  2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

  3. Do the Self-Diagnostic Function with the HDS or the climate control unit - Refer to: How to Troubleshoot the Body ElectricalHow to Troubleshoot the Climate Control System .

  4. Check for DTCs.

  DTC Description	DTC
  B1234 A short in the air mix control motor circuit (driver's)

  Is DTC B1234 or 41 indicated?

  YES

  Go to step 2.

  NO

  Intermittent failure. Check for loose wires or poor connections on the driver's air mix control motor circuit.

• 2. Determine possible failure area (SENSOR 5V/S5V line, others):

  1. Turn the vehicle to the OFF (LOCK) mode.

  2. Disconnect the following connector.

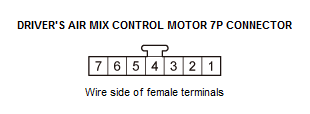

  Driver's air mix control motor 7P connector

  3. Turn the vehicle to the ON mode.

  4. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle ON mode
  	Driver's air mix control motor 7P connector: disconnected
  Test point 1	Driver's air mix control motor 7P connector No. 3
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there about 5 V?

  YES

  The SENSOR 5V/S5V wire is OK. Go to step 3.

  NO

  Go to step 4.

• 3. Determine possible failure area (driver's air mix control motor, others):

  1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle ON mode
  	Driver's air mix control motor 7P connector: disconnected
  Test point 1	Driver's air mix control motor 7P connector No. 2
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there about 5 V?

  YES

  Replace the driver's air mix control motor - Refer to: Passenger's Air Mix Control Motor Removal and InstallationAir Mix Control Motor Removal and Installation .

  NO

  Go to step 6.

• 4. Open wire check (SENSOR 5V/S5V line):

  1. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle ON mode
  	Driver's air mix control motor 7P connector: disconnected
  Test point 1	Climate control unit 32P connector No. 17
  Test point 2	Body ground

  Is there about 5 V?

  YES

  Repair an open in the wire between the climate control unit and the driver's air mix control motor.

  NO

  The SENSOR 5V/S5V wire is not open. Go to step 5.

• 5. Shorted wire check (SENSOR 5V/S5V line):

  1. Turn the vehicle to the OFF (LOCK) mode.

  2. Disconnect the following connector.

  Climate control unit 32P connector

  3. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Climate control unit 32P connector: disconnected
  	Driver's air mix control motor 7P connector: disconnected
  Test point 1	Climate control unit 32P connector No. 17
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire between the climate control unit and the driver's air mix control motor.

  NO

  The SENSOR 5V/S5V wire is OK. Replace the climate control unit .

• 6. Shorted wire check (AMD P DR/AMD-P line):

  1. Turn the vehicle to the OFF (LOCK) mode.

  2. Disconnect the following connector.

  Climate control unit 32P connector

  3. Check for continuity between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Climate control unit 32P connector: disconnected
  	Driver's air mix control motor 7P connector: disconnected
  Test point 1	Climate control unit 32P connector No. 20
  Test point 2	Body ground

  Is there continuity?

  YES

  Repair a short to ground in the wire between the climate control unit and the driver's air mix control motor.

  NO

  The AMD P DR/AMD-P wire is OK. Replace the climate control unit .
