Start-Up Procedure and Diagnostic Menu

Start-Up Procedure and Diagnostic Menu

NOTE: Check the vehicle 12 volt battery condition first .

1. Start the engine

2. At any screen except the HOME screen, use the audio unit buttons:Press and hold the EJECT button, the POWER (

Courtesy of HONDA, U.S.A., INC.

) button, and the HOME button until the Select Diagnosis Items menu screen is displayed:

• Self-Diagnosis Mode (runs the automatic diagnosis of the audio system)
• Detail Information & Setting (allows you to manually diagnose the audio system)

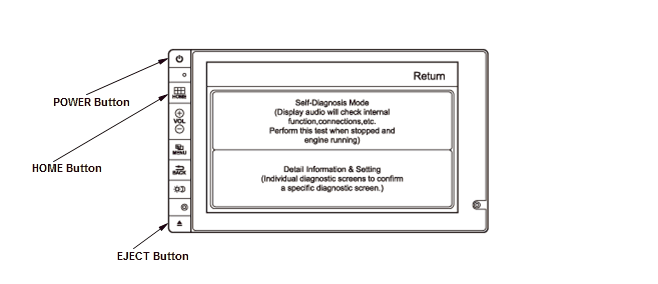

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.
