Audio Remote/Multi-Information Display Switch Removal, Installation, & Test: Test
- 1. Audio Remote/Multi-Information Display Switch - Test

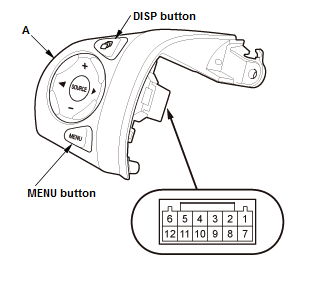

1. Measure the resistance between the terminals No. 2 and No. 5 in each switch position according to the table.
Position Resistance No button pressed About 10 kΩ SOURCE About 3.7 kΩ Right (CH +) About 1.7 kΩ Left (CH -) About 775 Ω + (VOL.UP) About 357 Ω - (VOL.DOWN) About 99 Ω 2. Measure the resistance between the terminals No. 3 and No. 5 in each switch position according to the table.
Position Resistance MENU About 33 Ω DISP About 363 Ω 3. If the resistance is not as specified, replace the audio remote/multi-information display switch.
