Test Procedure

1. Center Console - Remove
2. Park Pin Switch - Test

Courtesy of HONDA, U.S.A., INC.

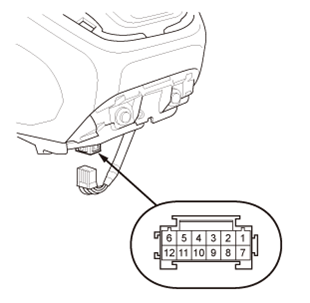

1. Disconnect the connector

2. Check for continuity between the terminals No. 5 and No. 6.
- There should be no continuity when the shift lever is moved to P and the shift lever button is released.
- There should be continuity when the shift lever button pressed to the shift lever is moved out of P.
3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, the park pin switch is faulty; replace the shift lever assembly .
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
