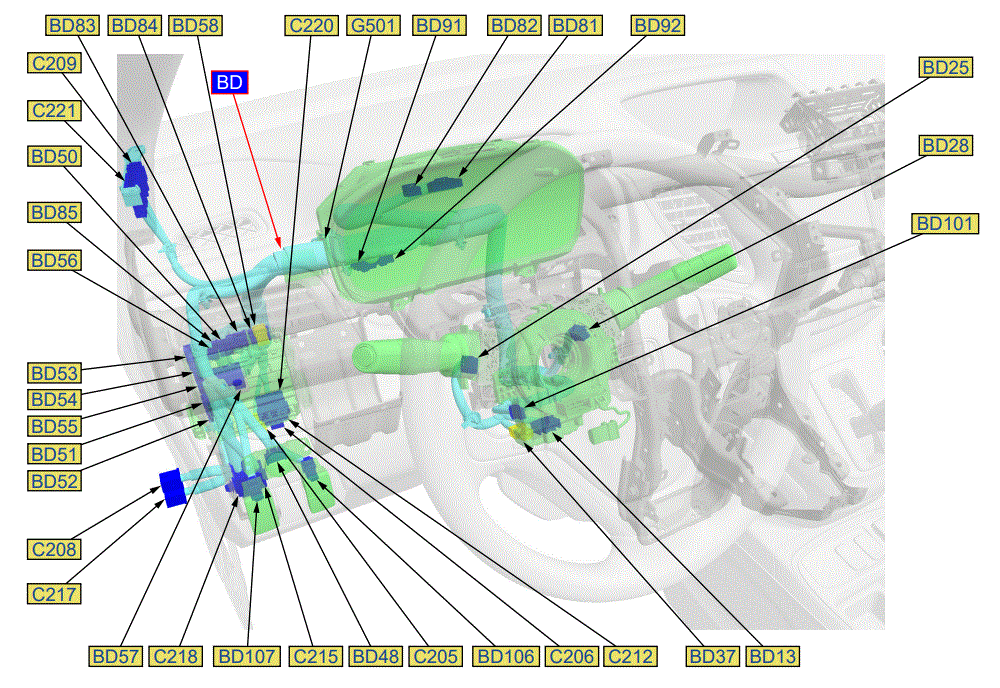

C218 Connector Location
BD: Dashboard Wire Harness
| Ref. No. | Connector Name | Male/Female | Connector Type | Notes |
| BD101 | Steering Angle Sensor 4P Connector | Female | Component Connector | |
| BD106 | TPMS Switch 5P Connector | Female | Component Connector | |
| BD107 | VSA OFF Switch 5P Connector | Female | Component Connector | |
| BD13 | Cable Reel Connector A (20P) | Female | Component Connector | |
| BD25 | Combination Light Switch 12P Connector | Female | Component Connector | |
| BD28 | Wiper/Washer Switch 10P Connector | Female | Component Connector | |
| BD37 | Cable Reel Connector B (4P) | Female | Component Connector | |
| BD48 | ECON Switch 6P Connector | Female | Component Connector | |
| BD50 | Under-Dash Fuse/Relay Box Connector K (12P) | Female | Component Connector | |
| BD51 | Under-Dash Fuse/Relay Box Connector R (8P) | Female | Component Connector | |
| BD52 | Under-Dash Fuse/Relay Box Connector S (10P) | Female | Component Connector | |
| BD53 | Under-Dash Fuse/Relay Box Connector N (13P) | Female | Component Connector | |
| BD54 | Under-Dash Fuse/Relay Box Connector P (20P) | Female | Component Connector | |
| BD55 | Under-Dash Fuse/Relay Box Connector Q (16P) | Female | Component Connector | |
| BD56 | Under-Dash Fuse/Relay Box Connector M (7P) | Female | Component Connector | |
| BD57 | Under-Dash Fuse/Relay Box Connector A (5P) | Female | Component Connector | |
| BD58 | Under-Dash Fuse/Relay Box Connector H (4P) | Female | Component Connector | |
| BD81 | Gauge Control Module Connector A (32P) | Female | Component Connector | |
| BD82 | Gauge Control Module Connector B (12P) | Female | Component Connector | |
| BD83 | Under-Dash Fuse/Relay Box Connector W (24P) | Female | Component Connector | |
| BD84 | Under-Dash Fuse/Relay Box Connector T (20P) | Female | Component Connector | |
| BD85 | Under-Dash Fuse/Relay Box Connector X (10P) | Female | Component Connector | |
| BD91 | Under-Dash Relay Holder A | Component Connector | ||
| BD92 | Under-Dash Relay Holder B | Component Connector | ||
| C205 | C205 | In-line Connector | ||
| C206 | C206 | In-line Connector | ||
| C208 | C208 | In-line Connector | ||
| C209 | C209 | In-line Connector | ||
| C212 | C212 | In-line Connector | ||
| C215 | C215 | In-line Connector | ||
| C217 | C217 | In-line Connector | ||
| C218 | C218 | In-line Connector | ||
| C220 | C220 | In-line Connector | ||
| C221 | C221 | In-line Connector | ||
| G501 | G501 | Ground |
