Rear Wheelhouse Gusset Removal and Installation
>>
Rear Wheelhouse Gusset Removal
Rear Wheelhouse Gusset Removal
1. Rear Wheelhouse Gusset - Remove

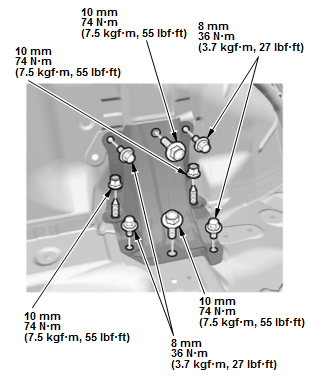

Fig 1: Rear Wheelhouse Gusset With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
2. All Removed Parts - Install - Install the parts in the reverse order of removal.
Courtesy of HONDA, U.S.A., INC.
