Cable Reel Removal & Installation: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• Before installing the steering wheel, make sure the front wheels are aligned straight ahead.
• New cable reel is locked by yellow tab for center adjustment. When installing a new cable reel there is no need to rotate the cable reel. You remove the tab and discard it, after install new cable reel.
• If the driver's airbag is deployed, cable reel cannot be reused because of thermal damage.

• 1. Cable Reel - Install

  Courtesy of HONDA, U.S.A., INC.

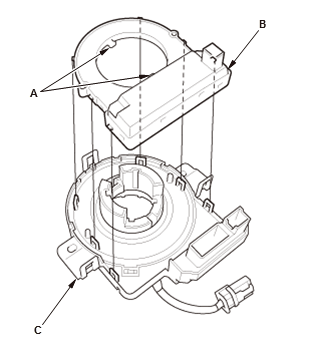

  1. Position the two tabs (A) of the steering angle sensor (B) as shown. Install the cable reel (C) to the steering angle sensor.

  NOTE:  When reinstalling used components, make sure to keep the positions of the rotating parts as they were originally kept.

  Courtesy of HONDA, U.S.A., INC.

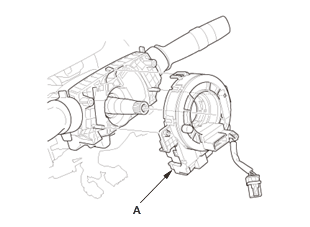

  2. Install the cable reel/steering angle sensor (A).

  Courtesy of HONDA, U.S.A., INC.

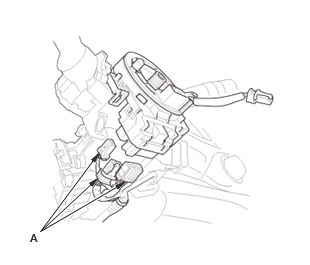

  3. Connect the connectors (A).

• 2. Column Covers - Install
• 3. Cable Reel - Align

  Courtesy of HONDA, U.S.A., INC.

  1. Make sure the front wheels are pointing straight ahead

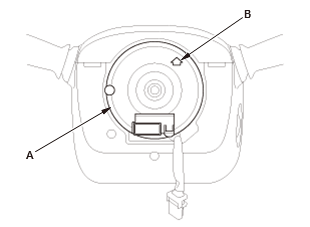

  2. Center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops

  3. Rotate the cable reel counterclockwise about three full turns. The arrow mark (B) on the cable reel label should point straight up.

• 4. Steering Wheel - Install
• 5. Connector (Cable Reel) - Connect

  Courtesy of HONDA, U.S.A., INC.

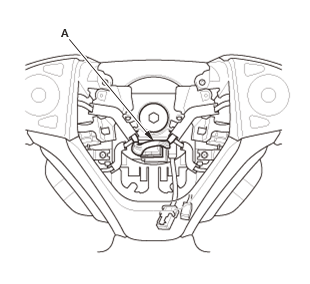

  1. Connect the connector (A).

• 6. Driver's Airbag - Install
• 7. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

• 8. VSA Sensor Neutral Position - Memorize
• 9. Steering Angle Sensor Neutral Position - Clear
