Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:  If replacing the driver's airbag after deployment, refer to Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

• 1. 12 Volt Battery Terminal - Disconnect

  NOTE:  Wait at least 3 minutes before starting work.

• 2. Driver's Airbag - Remove

  Courtesy of HONDA, U.S.A., INC.

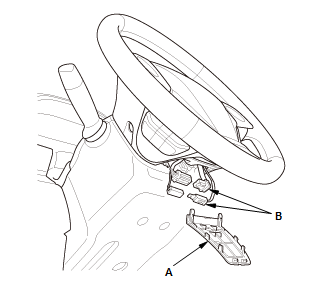

  1. Remove the access panel (A)

  2. Disconnect the connectors (B).

  Courtesy of HONDA, U.S.A., INC.

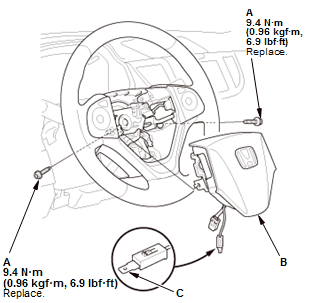

  3. Remove the bolts (A), then remove the driver's airbag (B). NOTE:  Make sure the terminal tab (C) of the horn switch connector attached to the driver's airbag side when removing the driver's airbag. If you are replacing a deployed driver's airbag, inspect the cable reel for heat damage. If there is any damage, replace the cable reel .

• 3. All Removed Parts - Install

  Courtesy of HONDA, U.S.A., INC.

  1. Install the all removed parts in the reverse order of removal.

  NOTE:

  • During installation, install the new bolts to the specified torque.

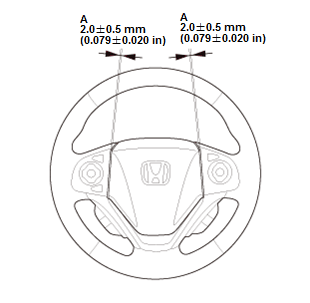

  • Make sure the clearance (A) between the steering wheel and horn pad is the specified value.
  • After connecting the negative cable to the 12 volt battery, make sure the horn works properly.
• 4. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
