Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. 12 Volt Battery Terminal - Disconnect

  NOTE:  Wait at least 3 minutes before starting work.

• 2. Multi-Information Display Unit - Remove
• 3. Front Passenger's Airbag Cutoff Indicator - Remove

  Courtesy of HONDA, U.S.A., INC.

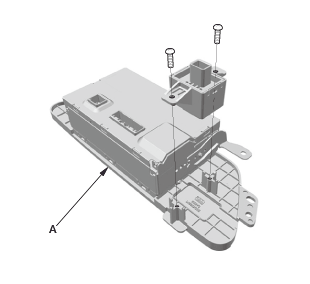

  1. Remove the front passenger's airbag cutoff indicator (A).

• 4. All Removed Parts - Install the all removed parts in the reverse order of removal.
• 5. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
