Front Passenger's Airbag Removal & Installation: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Front Passenger's Airbag - Install

  Courtesy of HONDA, U.S.A., INC.

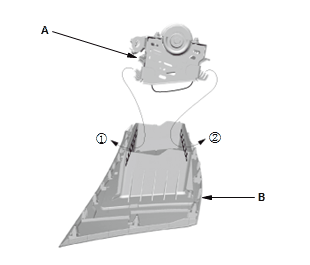

  1. Insert the front passenger's airbag housing (A) into the new front passenger's lid (B).

  NOTE:

  • Make sure there are no objects between the airbag and the lid.
  • Make sure the airbag is fully seated, and make sure the lid is not deformed or damaged after the airbag is in place.
  • Replace the airbag if its housing is damaged.
  • Do not use any tools when attaching the front passenger's airbag in order to protect it.
  • Make sure the hooks are set properly.
• 2. Front Passenger's Airbag Assembly - Install

  Courtesy of HONDA, U.S.A., INC.

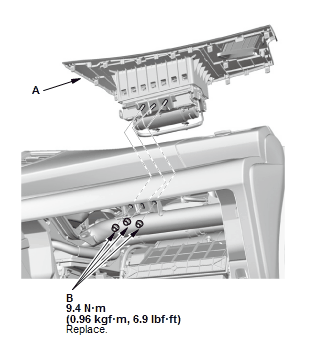

  1. Place the front passenger's airbag and lid as an assembly (A) into the dashboard

  2. Tighten the new mounting nuts (B).

  Courtesy of HONDA, U.S.A., INC.

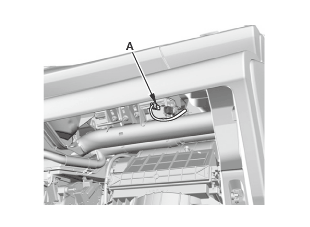

  3. Connect the connector (A).

• 3. Glove box - Install
• 4. 12 Volt Battery Terminal - Connect
• 5. SRS Operation - Confirm

  1. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
