Front Passenger's Weight Sensor Removal & Installation: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• Be sure to install the harness wires so they are not pinched or interfering with other parts.
• The front passenger's weight sensor is part of the seat rail and must be replaced as an assembly.

• 1. Front Passenger's Seat Rail/Front Passenger's Weight Sensors - Install

  Courtesy of HONDA, U.S.A., INC.

  Courtesy of HONDA, U.S.A., INC.

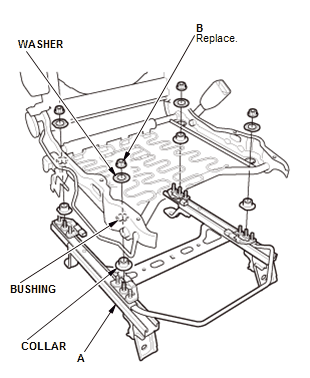

  1. Install the front passenger's seat rail/front passenger's weight sensors as an assembly (A) to the seat frame as shown, and loosely tighten the new nuts (B).

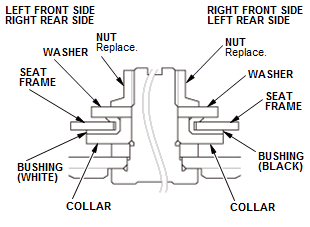

  NOTE:  The bushings can be identified by their color. Make sure to install the bushings as shown.

  Fig 1: Seat Frame With Torque Specifications & Tightening Sequence

  Courtesy of HONDA, U.S.A., INC.

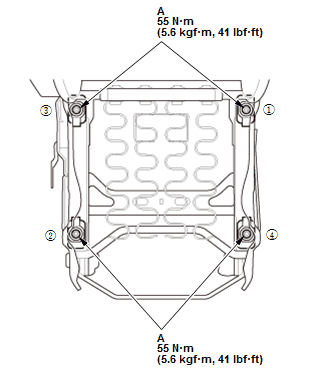

  2. Tighten the nuts (A) to the specified torque.

  NOTE:  Tighten the nuts in the numbered sequence shown.

  Courtesy of HONDA, U.S.A., INC.

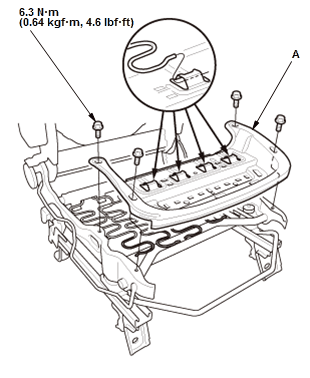

  3. Install the seat cushion frame (A).

• 2. Front Seat Frame (Passenger's side) - Install
• 3. 12 Volt Battery Terminal - Connect
• 4. Seat Operation - Confirm

  1. Move the front seat and the seat-back through their full ranges of movement, making sure the harness are not pinched or interfering with other parts.

• 5. Front Passenger's Weight Sensor Unit - Initialize
• 6. Front Passenger's Weight Sensor Unit - Operation Check
• 7. SRS Operation - Confirm

  1. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
