Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Battery Terminal - Disconnect

  NOTE:  Wait at least 3 minutes before starting work.

• 2. Rear Seat Cushion - Remove
• 3. Rear Seat-Back - Remove
• 4. Carpet - Remove

  Turn over the carpet as needed.

• 5. Rear Safing Sensor - Remove

  Courtesy of HONDA, U.S.A., INC.

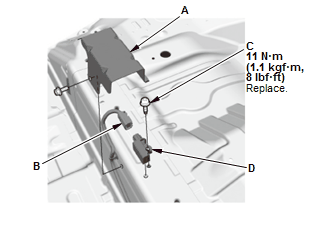

  1. Remove the cover (A), then disconnect the rear safing sensor connector (B) on the floor wire harness

  2. Remove the bolt (C), then remove the rear safing sensor (D).

• 6. All Removed Parts - Install the parts in the reverse order of removal.

  NOTE:

  • During installation, install the new bolt to the specified torque.
  • Before installing the rear safing sensor cover, make sure the SRS indicator works normally.
• 7. SRS Operation - Confirm

  Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
