Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. 12 Volt Battery Terminal - Disconnect

  NOTE:  Wait at least 3 minutes before starting work.

• 2. Center Console - Remove
• 3. Heater Joint Duct - Remove

  Courtesy of HONDA, U.S.A., INC.

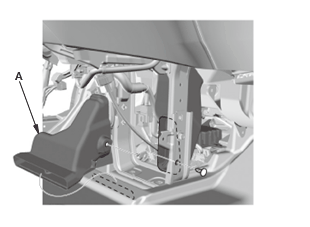

  1. Remove heater joint duct A.

  Courtesy of HONDA, U.S.A., INC.

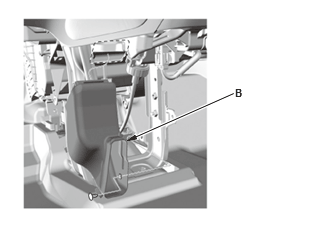

  2. Remove heater joint duct B.

• 4. SRS Unit - Remove

  Courtesy of HONDA, U.S.A., INC.

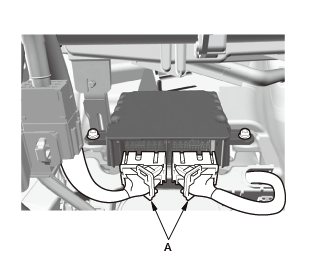

  1. Disconnect the connectors (A).

  NOTE:  The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors .

  Courtesy of HONDA, U.S.A., INC.

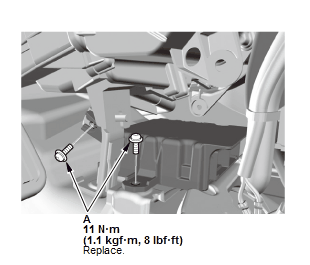

  2. Remove the bolts (A) from left side.

  Courtesy of HONDA, U.S.A., INC.

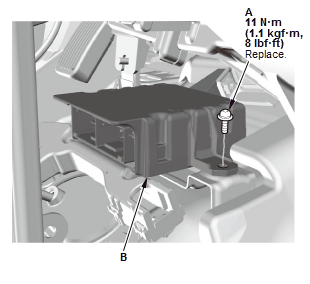

  3. Remove the bolt (A) from the right side, then remove the SRS unit (B).

• 5. All Removed Parts - Install the all removed parts in the reverse order of removal.

  NOTE:

  • During installation, install the new bolts to the specified torque.
  • Before installing the heater joint duct, make sure the SRS indicator works normally.
  • Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit .
• 6. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
