Supplemental Restraint System - Testing & Troubleshooting
>>
Circuit Diagram
>>

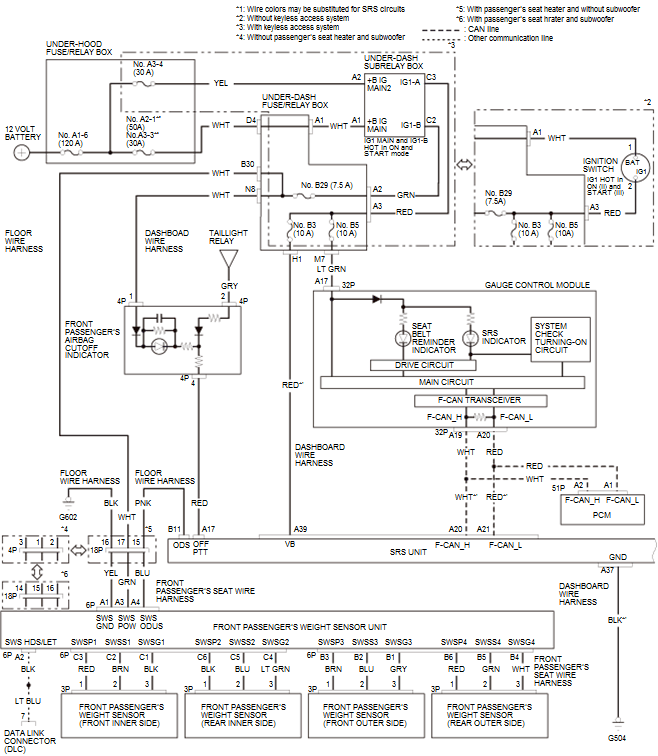

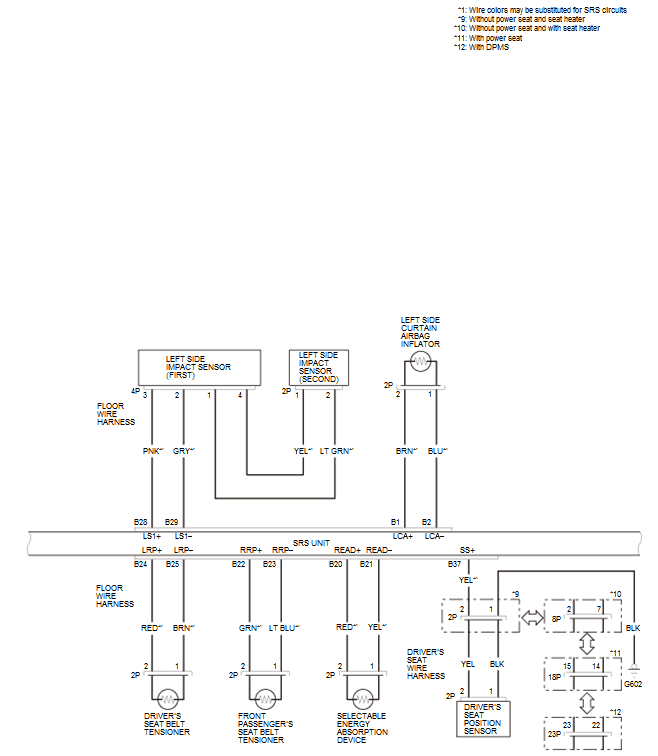

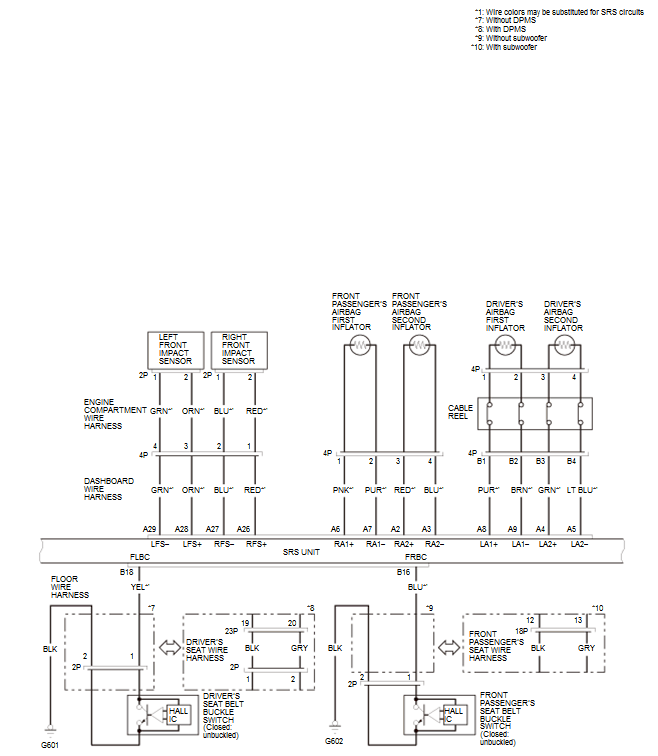

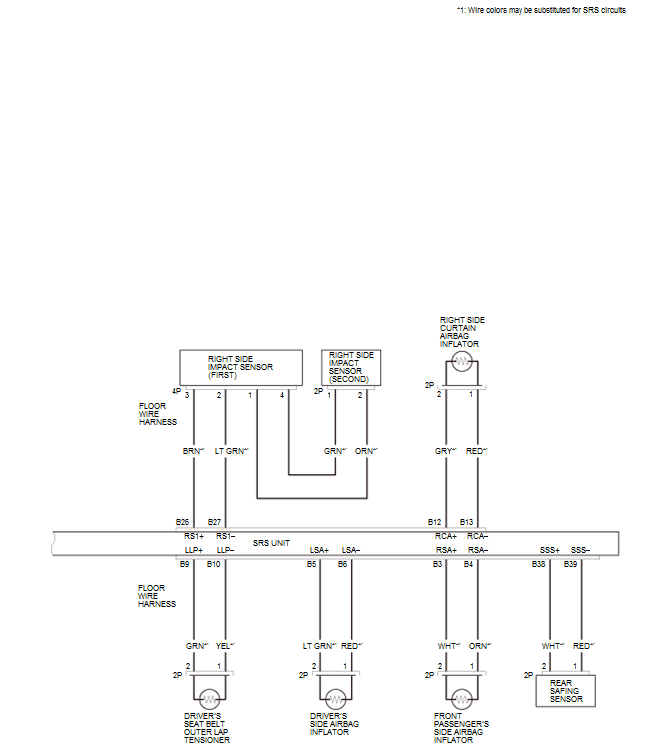

SRS Circuit Diagram(Except Touring)
SRS Circuit Diagram(Except Touring)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
