Driver's Seat Position Sensor Operation Check: Check

NOTE:  Check the driver's seat position sensor operation after the driver's seat position sensor replacement or removal.

• 1. HDS - Connect
• 2. Driver's Seat Position Sensor - Operation Check

  Courtesy of HONDA, U.S.A., INC.

  1. Make sure the driver's seat is in the full forward position

  2. From SRS in the HDS Main Menu, select SRS, then Data List

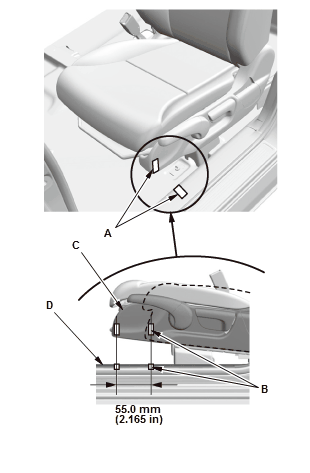

  3. Using two pieces of tape (A), make alignment marks (B) on the recline cover (C) and the front door sill trim (D) as shown. The driver's seat position sensor should read NEAR on the HDS

  4. Move the seat back in small increments (about 5 mm, (0.20 in)) until the driver's seat position sensor reads NOT NEAR on the HDS. The seat should be about 55.0 mm (2.165 in) from the front.

  NOTE:  It takes a few seconds for the HDS to change display, so wait for about 5 seconds between each movement. If the driver's seat position sensor data does not work as described above, check the driver's seat position sensor for damage, and replace parts as needed

  5. Turn the vehicle to the OFF (LOCK) mode.
