DTC B0029-13: Open or Increased Resistance in the Right Side Curtain Airbag Inflator
NOTE:
- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed .
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .
- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.
| DTC Description | DTC |
|---|---|
| B0029-13 Open or increased resistance in the right side curtain airbag inflator |
DTC (SRS)
- 1. Problem verification:
- 1. Clear the DTCs with the HDS .
- 2. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 3. Check for DTCs with the HDS .
DTC Description DTC B0029-13 Open or increased resistance in the right side curtain airbag inflator Is DTC B0029-13 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.
- 2. Right side curtain airbag inflator check:
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the headliner .
- 4. Disconnect the following connector.

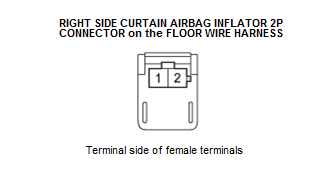

Right side curtain airbag inflator 2P connector (on the floor wire harness) - 5. Connect terminals A and B with a jumper wire.
Terminal A Right side curtain airbag inflator 2P connector No. 1 (on the floor wire harness) Terminal B Right side curtain airbag inflator 2P connector No. 2 (on the floor wire harness) - 6. Reconnect the negative cable to the 12 volt battery.
- 7. Clear the DTCs with the HDS .
- 8. Turn the vehicle to the ON mode, then wait for 10 seconds.
- 9. Check for DTCs with the HDS .
DTC Description DTC B0029-13 Open or increased resistance in the right side curtain airbag inflator Is DTC B0029-13 indicated?
YES
Go to step 3.
NO
Faulty right side curtain airbag inflator; replace the right side curtain airbag , then clear the DTC.
- 3. Open wire check (RCA+, RCA- lines):
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
- 3. Remove the jumper wire from the right side curtain airbag inflator 2P connector on the floor wire harness.
- 4. Disconnect the following connector.
SRS unit connector B (39P) - 5. Connect terminals A and B with a jumper wire.

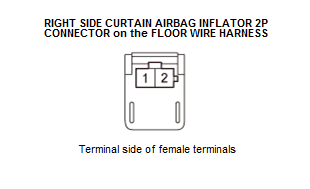

Terminal A SRS unit connector B (39P) No. 12 Terminal B SRS unit connector B (39P) No. 13 - 6. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Right side curtain airbag inflator 2P connector (on the floor wire harness): disconnected SRS unit connector B (39P): disconnected SRS unit connector B (39P) terminals No. 12 and No. 13: jumped Test point 1 Right side curtain airbag inflator 2P connector No. 1 (on the floor wire harness) Test point 2 Right side curtain airbag inflator 2P connector No. 2 (on the floor wire harness) Is there 1.0 Ω or less?
YES
The RCA+ and RCA- wires are OK. Faulty SRS unit or poor connection at SRS unit connector B (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit . If the DTC does not clear, replace the floor wire harness.
NO
Open in the floor wire harness; replace the floor wire harness, then clear the DTC.
