DTC B00D5-14: Open or Short to Ground in the Front Passenger's Airbag Cutoff Indicator

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed .
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .
• Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software , and retest.

DTC (SRS)

• 1. Problem verification:

  - 1. Clear the DTCs with the HDS .

  - 2. Turn the vehicle to the ON mode, then wait for 10 seconds.

  - 3. Check for DTCs with the HDS .

  DTC Description	DTC
  B00D5-14 Open or short to ground in the front passenger's airbag cutoff indicator

  Is DTC B00D5-14 indicated?

  YES

  The failure is duplicated. Go to step 2.

  NO

  Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

• 2. Open wire check (OFF PTT line):

  - 1. Turn the vehicle to the OFF (LOCK) mode.

  - 2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

  - 3. Disconnect the following connectors.

  Front passenger's airbag cutoff indicator 4P connector (on the dashboard wire harness)

  SRS unit connector A (39P)

  - 4. Measure the resistance between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Front passenger's airbag cutoff indicator 4P connector (on the dashboard wire harness): disconnected
  	SRS unit connector A (39P): disconnected
  Test point 1	SRS unit connector A (39P) No. 17
  Test point 2	Front passenger's airbag cutoff indicator 4P connector No. 4 (on the dashboard wire harness)

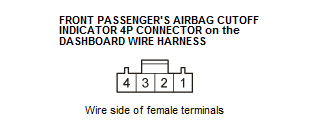

  Courtesy of HONDA, U.S.A., INC.

  Is there 1.0 Ω or less?

  YES

  The OFF PTT wire is not open. Go to step 3.

  NO

  Open in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.

• 3. Shorted wire check (OFF PTT line):

  - 1. Measure the resistance between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Front passenger's airbag cutoff indicator 4P connector (on the dashboard wire harness): disconnected
  	SRS unit connector A (39P): disconnected
  Test point 1	SRS unit connector A (39P) No. 17
  Test point 2	Body ground

  Is there an open circuit, or at least 1 MΩ?

  YES

  The OFF PTT wire is OK. Replace the front passenger's airbag cutoff indicator , then clear the DTC, and retest. If the DTC is still present, replace the SRS unit .

  NO

  Short to ground in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
