DTC 82-13: No Signal From the Front Passenger's Weight Sensor (front inner side)

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed .
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information .
• Make sure the harness under the front passenger's seat is not pinched or interfering with other parts.

DTC (SWS)

• 1. Problem verification:

  1. Clear the DTCs with the HDS .

  2. Turn the vehicle to the ON mode, then wait for 10 seconds.

  3. Check for DTCs with the HDS .

  DTC Description	DTC
  82-13 No signal from the front passenger's weight sensor (front inner side)

  Is DTC 82-13 indicated?

  YES

  The failure is duplicated. Go to step 2.

  NO

  Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures . If another DTC is indicated, troubleshoot the DTC.

• 2. Open wire check (SWSP1 line):

  1. Turn the vehicle to the OFF (LOCK) mode.

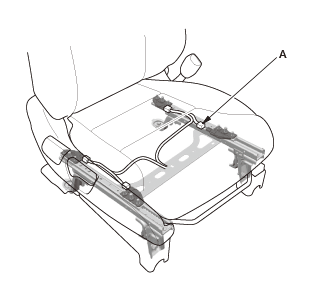

  2. Disconnect the front passenger's weight sensor (front inner side) 3P connector (A) on the front passenger's seat wire harness.

  Courtesy of HONDA, U.S.A., INC.

  3. Turn the vehicle to the ON mode.

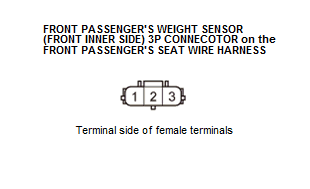

  4. Measure the voltage between test points 1 and 2.

  Test condition	Vehicle ON mode
  	Front passenger's weight sensor (front inner side) 3P connector (on the front passenger's seat wire harness): disconnected
  Test point 1	Front passenger's weight sensor (front inner side) 3P connector No. 1 (on the front passenger's seat wire harness)
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there about 5 V?

  YES

  The SWSP1 wire is OK. Go to step 3.

  NO

  Open in the front passenger's seat wire harness; replace the front passenger's seat wire harness, then clear the DTC.

• 3. Shorted wire check (SWSS1 line):

  1. Turn the vehicle to the OFF (LOCK) mode.

  2. Disconnect the following connector.

  Front passenger's weight sensor unit connector C (6P)

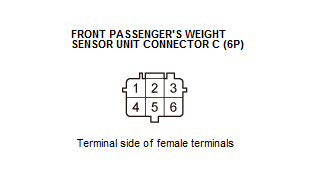

  3. Measure the resistance between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Front passenger's weight sensor unit connector C (6P): disconnected
  	Front passenger's weight sensor (front inner side) 3P connector (on the front passenger's seat wire harness): disconnected
  Test point 1	Front passenger's weight sensor unit connector C (6P) No. 2
  Test point 2	Body ground

  Courtesy of HONDA, U.S.A., INC.

  Is there an open circuit, or at least 1 MΩ?

  YES

  The SWSS1 wire is not shorted. Go to step 4.

  NO

  Short to ground in the front passenger's seat wire harness; replace the front passenger's seat wire harness, then clear the DTC.

• 4. Shorted wire check (SWSS1 line to SWSG1 line):

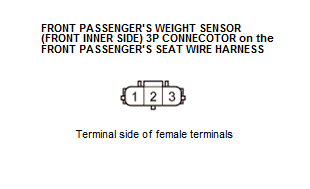

  1. Measure the resistance between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Front passenger's weight sensor unit connector C (6P): disconnected

  	Front passenger's weight sensor (front inner side) 3P connector (on the front passenger's seat wire harness): disconnected
  Test point 1	Front passenger's weight sensor (front inner side) 3P connector No. 2 (on the front passenger's seat wire harness)
  Test point 2	Front passenger's weight sensor (front inner side) 3P connector No. 3 (on the front passenger's seat wire harness)

  Courtesy of HONDA, U.S.A., INC.

  Is there an open circuit, or at least 1 MΩ?

  YES

  The SWSS1 and SWSG1 wires are not shorted. Go to step 5.

  NO

  Short to another wire in the front passenger's seat wire harness; replace the front passenger's seat wire harness, then clear the DTC.

• 5. Open wire check (SWSS1 lines):

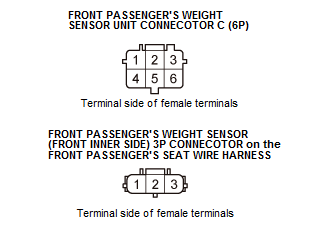

  1. Measure the resistance between test points 1 and 2.

  Test condition	Vehicle OFF (LOCK) mode
  	Front passenger's weight sensor unit connector C (6P): disconnected
  	Front passenger's weight sensor (front inner side) 3P connector (on the front passenger's seat wire harness): disconnected
  Test point 1	Front passenger's weight sensor unit connector C (6P) No. 2
  Test point 2	Front passenger's weight sensor (front inner side) 3P connector No. 2 (on the front passenger's seat wire harness)

  Courtesy of HONDA, U.S.A., INC.

  Is there 1.0 Ω or less?

  YES

  Faulty front passenger's weight sensor (front inner side); replace the front passenger's seat rail including all four front passenger's weight sensors , then clear the DTC.

  NO

  Open in the front passenger's seat wire harness; replace the front passenger's seat wire harness, then clear the DTC.
