G400 (Standard) Connector End View (G400)

Harness-Family: Battery_Negative

Color: NA

Gender: FEMALE

Part Number: 1/xxxxx/44

Part Description: Not Available

Connector No: G400

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

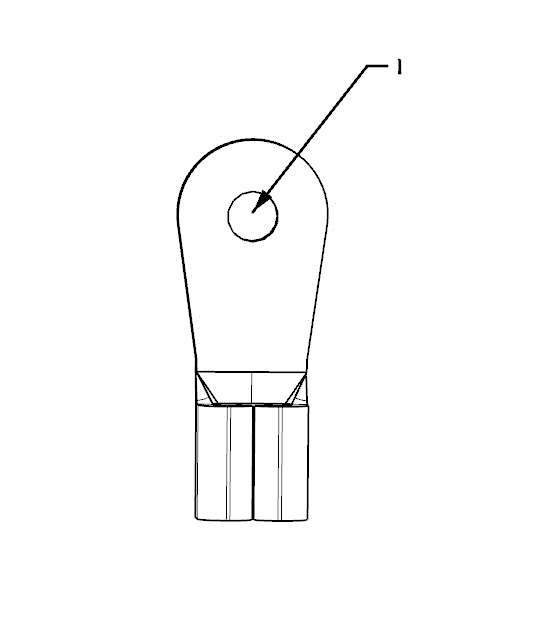

Fig 1: G400 Connector End View (Standard)

GCWD1000574

Courtesy of CHRYSLER

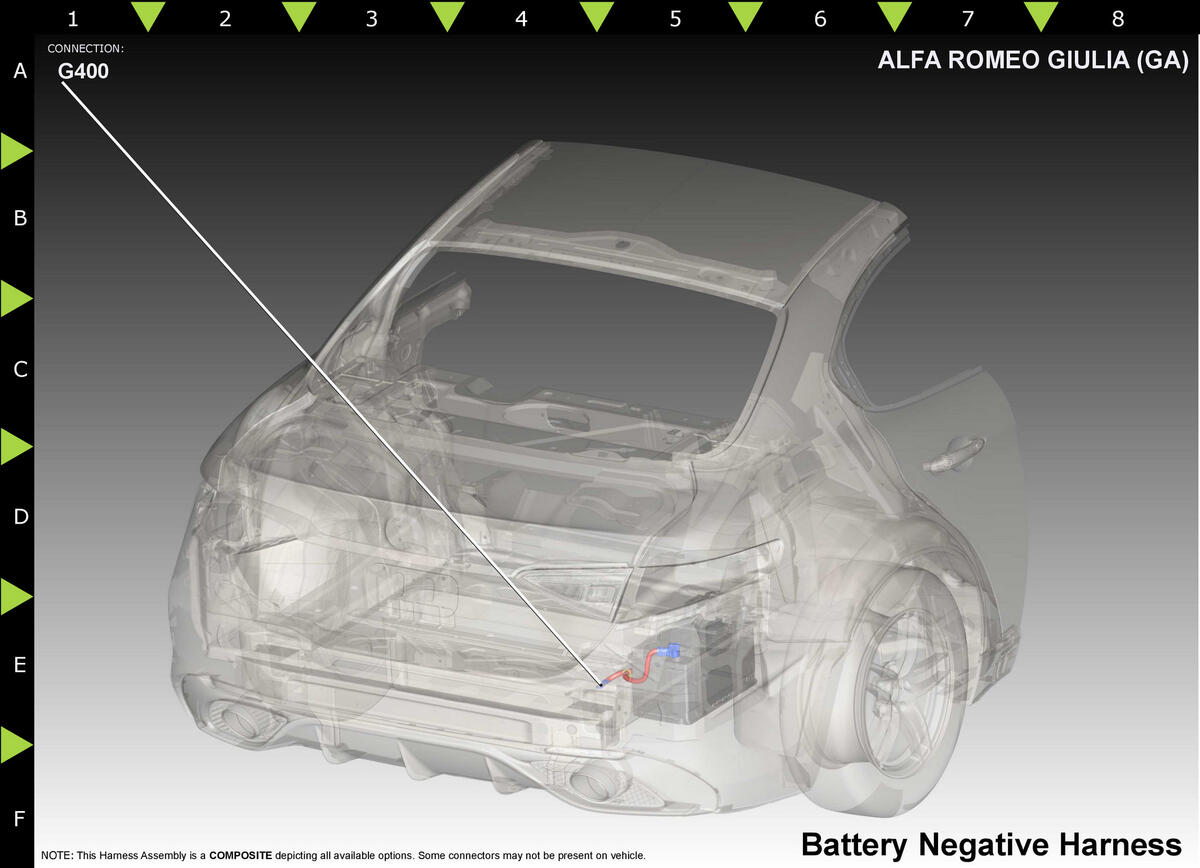

Fig 2: G400 Component Location (Standard)

GCWD1268057

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z1

BK

50

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
