Generator C1 (2.9L) Connector End View (D3000A)

Harness-Family: Starter_Generator_29L

Color: NA

Gender: FEMALE

Part Number: 0747

Part Description: Not Available

Connector No: D3000A

Option: 2.9L

Repair Kit Part Number: Not Available

Cavity Count: null

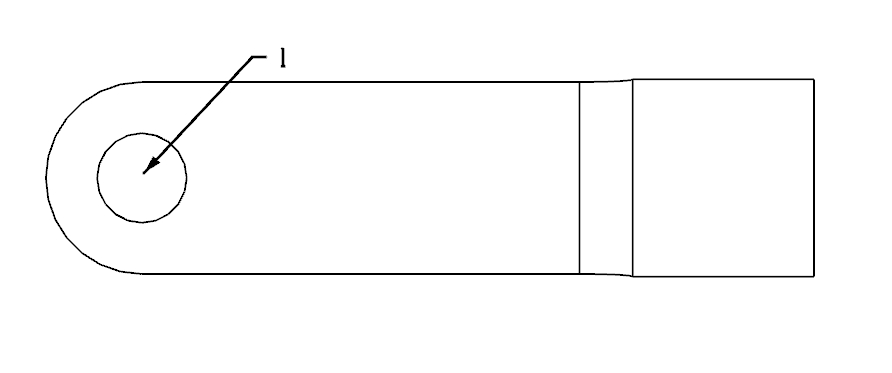

Fig 1: Generator C1 Connector End View (2.9L)

Courtesy of CHRYSLER

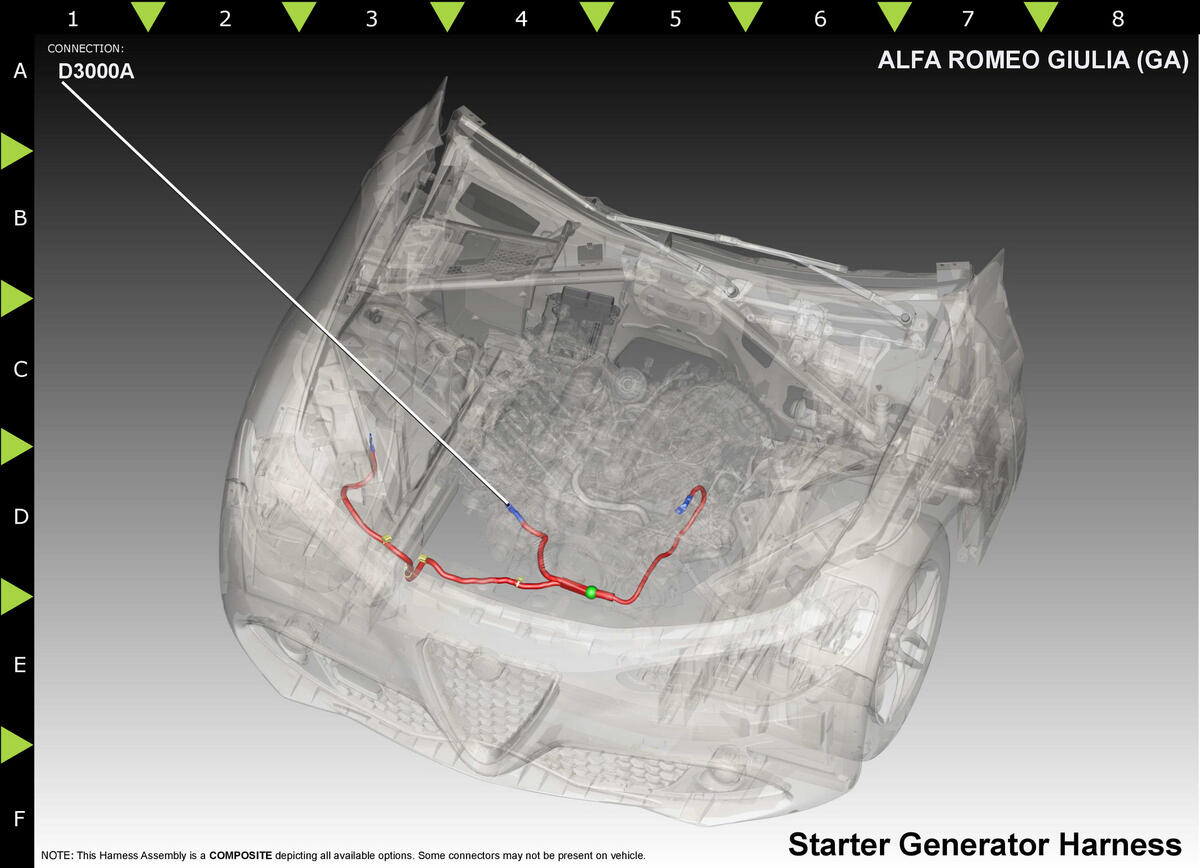

Fig 2: Generator C1 Component Location (2.9L)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

B(+)

2.9L

⁽¹⁾	Pins not listed are not used for this connector
