Lamp-Door Handle-Exterior-Right Rear (Standard) Connector End View (D4604A)

Harness-Family: Door_Right_Rear

Color: BLACK

Gender: FEMALE

Part Number: 80014115A01A

Part Description: Not Available

Connector No: D4604A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

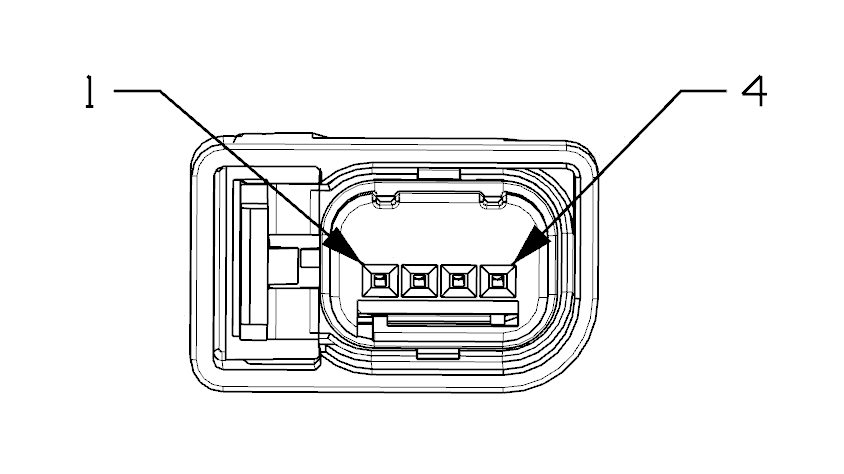

Fig 1: Lamp-Door Handle-Exterior-Right Rear Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Lamp-Door Handle-Exterior-Right Rear Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

E12

RD/GY

0.5

PANEL LAMPS DRIVER

KEYLESS IGNITION

Z916

WH/BK

0.5

GROUND

KEYLESS IGNITION

⁽¹⁾	Pins not listed are not used for this connector
