Module-Park Assist C3 (Standard) Connector End View (D3867C)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1/14410/97

Part Description: Not Available

Connector No: D3867C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

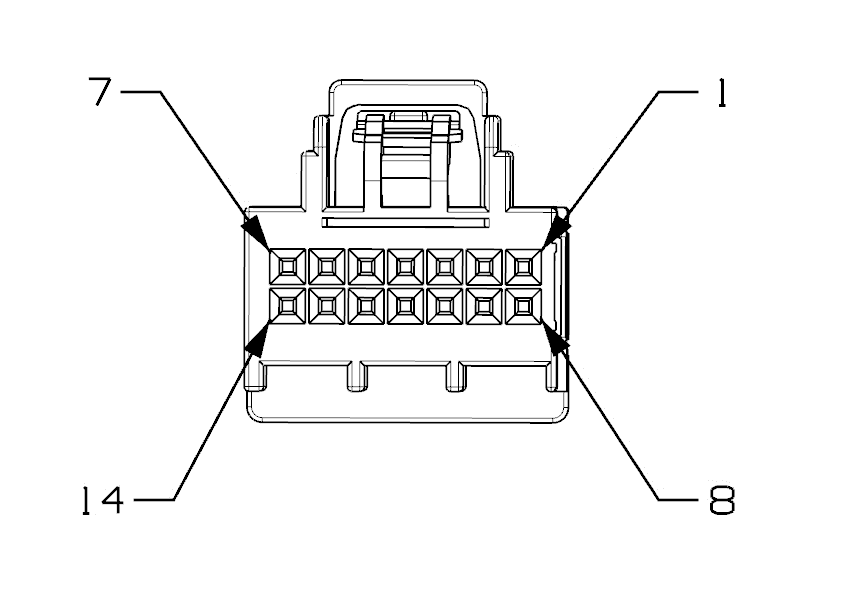

Fig 1: Module-Park Assist C3 Connector End View (Standard)

Courtesy of CHRYSLER

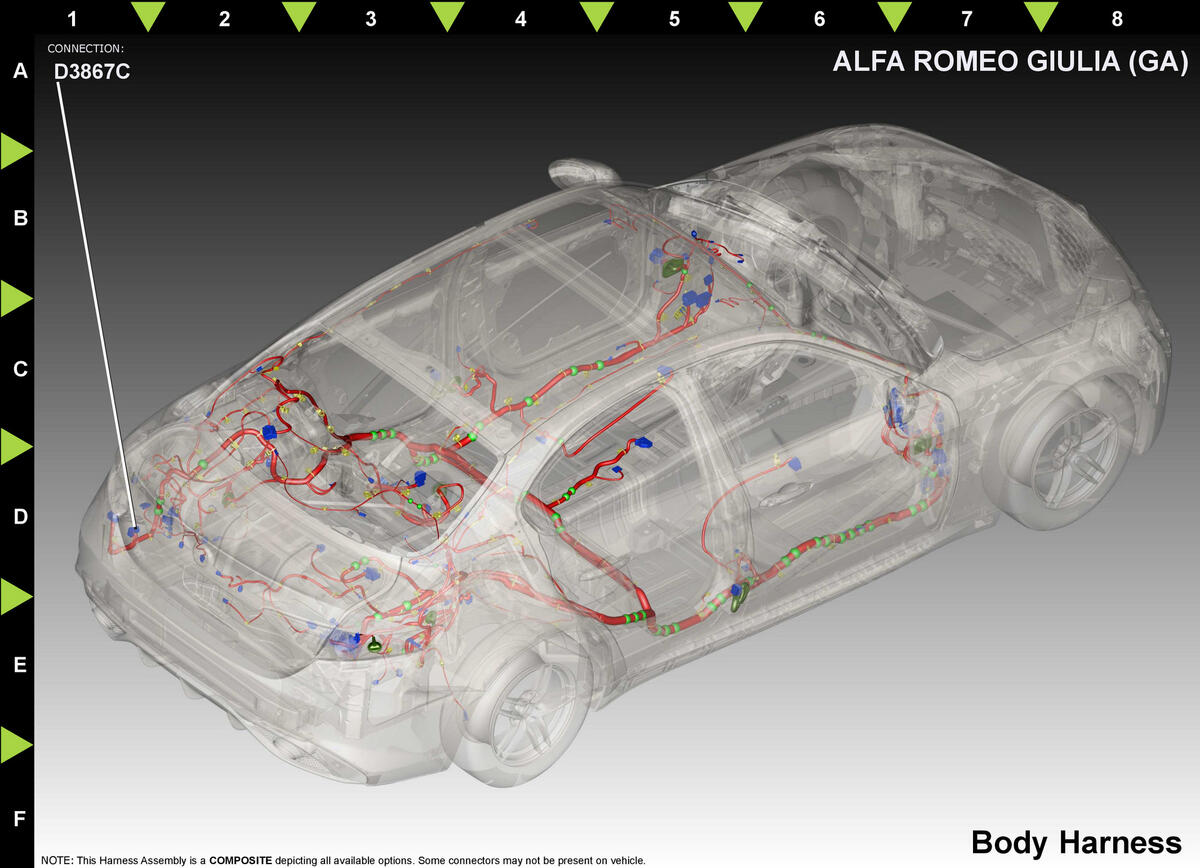

Fig 2: Module-Park Assist C3 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X702

OG/WH

0.35

FRONT PARK ASSIST SENSOR SUPPLY

PARK ASSIST

D708

WH/BN

0.35

PARK ASSIST SIGNAL 5

PARK ASSIST

D706

WH/YE

0.35

PARK ASSIST SIGNAL 3

PARK ASSIST

Z908

BK/VT

0.35

GROUND

PARK ASSIST

D705

VT/GY

0.35

PARK ASSIST SIGNAL 2

PARK ASSIST

D707

WH/DB

0.35

PARK ASSIST SIGNAL 4

PARK ASSIST

⁽¹⁾	Pins not listed are not used for this connector
