Motor-Seat Adjuster-Rear Driver Vertical (Standard) Connector End View (D3034A)

Harness-Family: Seat_Driver

Color: BROWN

Gender: FEMALE

Part Number: 1359738101

Part Description: Not Available

Connector No: D3034A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Motor-Seat Adjuster-Rear Driver Vertical Connector End View (Standard)

Courtesy of CHRYSLER

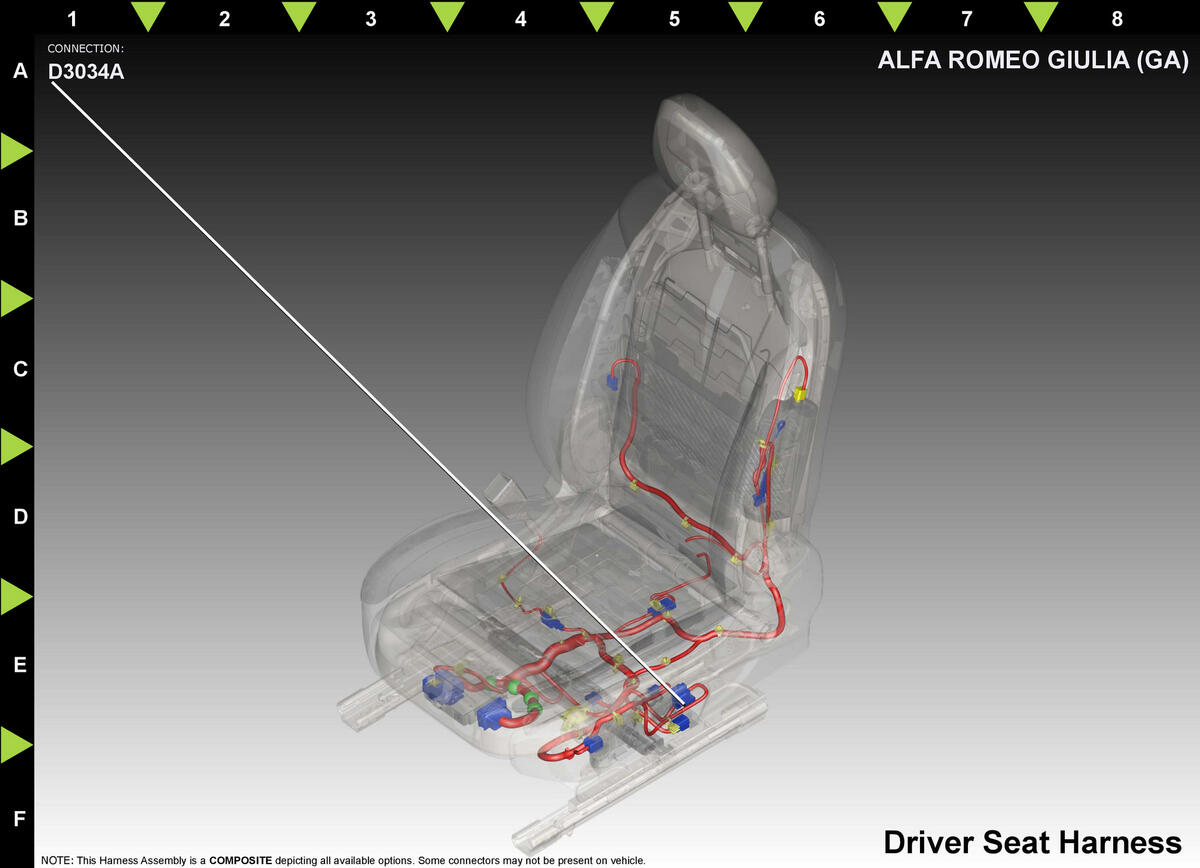

Fig 2: Motor-Seat Adjuster-Rear Driver Vertical Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

P113

YE/RD

1.5

DRIVER SEAT MOTOR DRIVER 2

N/A

G402

OG/DB

0.5

DRIVER SEAT REAR VERTICAL POSITION SENSE

N/A

P111

YE/GN

1.5

DRIVER SEAT REAR VERTICAL MOTOR DRIVER

N/A

G493

0.5

SEAT SWITCH/SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
