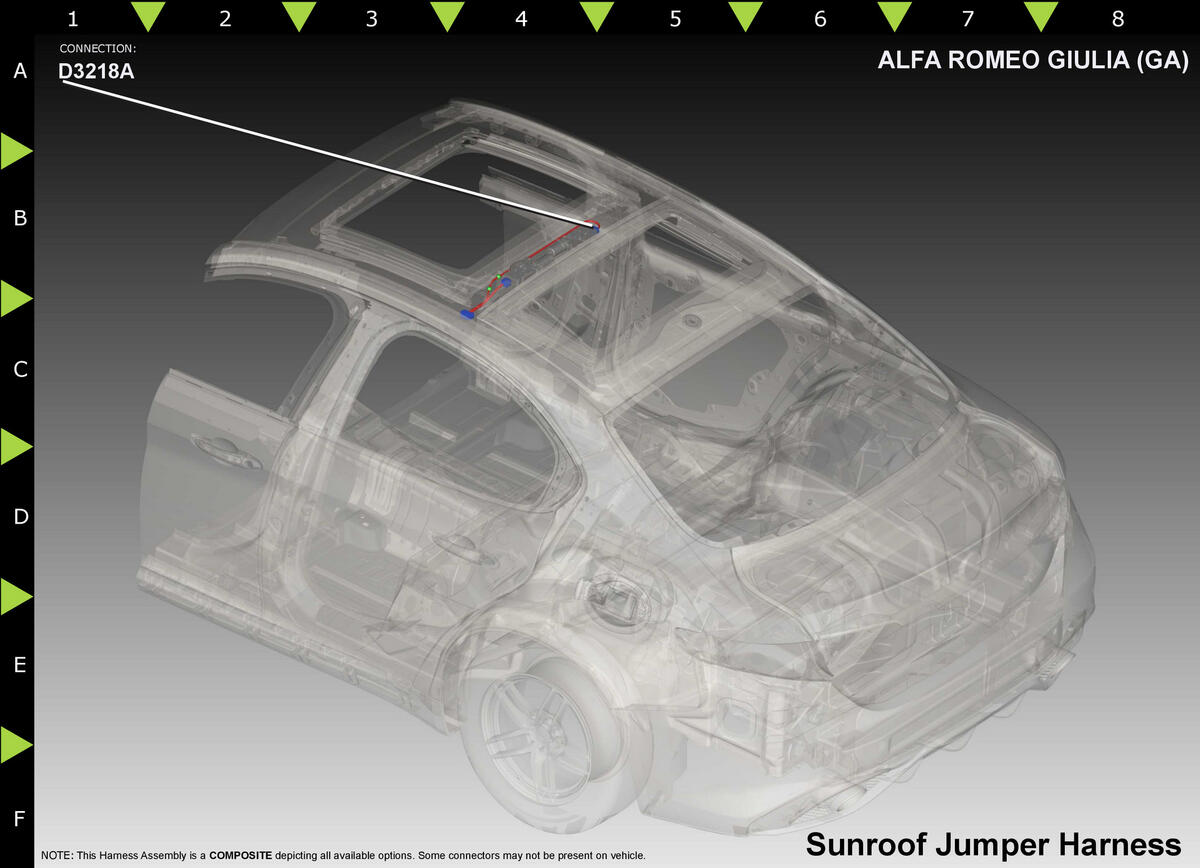

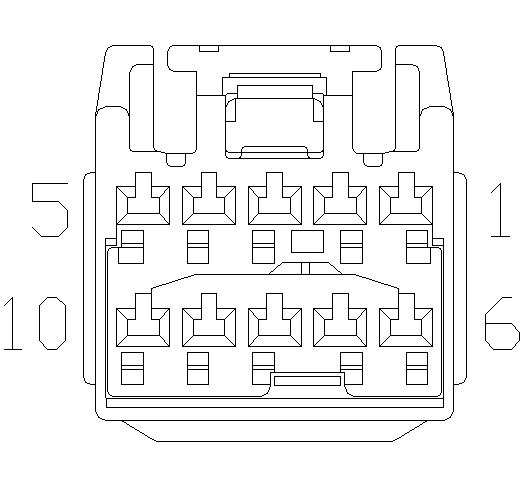

Motor-Sunroof Shade (Standard) Connector End View (D3218A)
Harness-Family: Sunroof_Jumper
Color: GRAY
Gender: FEMALE
Part Number: 7283-5533-40
Part Description: Not Available
Connector No: D3218A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | T754 | WH | 0.35 | REMOTE START SIGNAL | SUNROOF | ||
| 2 | F741 | BK | 0.35 | IGNITION RUN/START OUTPUT | SUNROOF | ||
| 3 | D505 | BN | 0.35 | LIN BUS | SUNROOF | ||
| 5 | Q556 | YE | 0.35 | SUNROOF SHADE PWR OPEN (+) | SUNROOF | ||
| 6 | A901 | RD | 1.5 | FUSED B(+) | SUNROOF | ||
| 8 | Z905 | BK | 1.5 | GROUND | SUNROOF | ||
| 10 | Q56 | DB | 0.35 | SUNROOF SHADE PWR CLOSE (+) | SUNROOF | ||
|
|||||||
