Motor-Torque Rear Differential-Left (Standard) Connector End View (D3054A)

Harness-Family: Rear_Differential

Color: BLACK

Gender: FEMALE

Part Number: 1/13506/97

Part Description: Not Available

Connector No: D3054A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

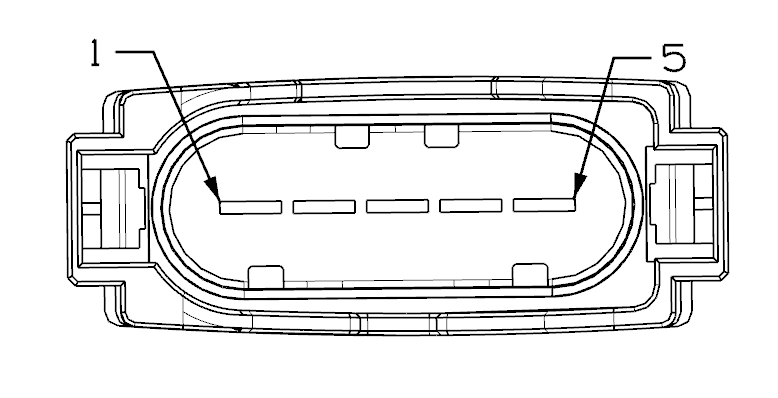

Fig 1: Motor-Torque Rear Differential-Left Connector End View (Standard)

Courtesy of CHRYSLER

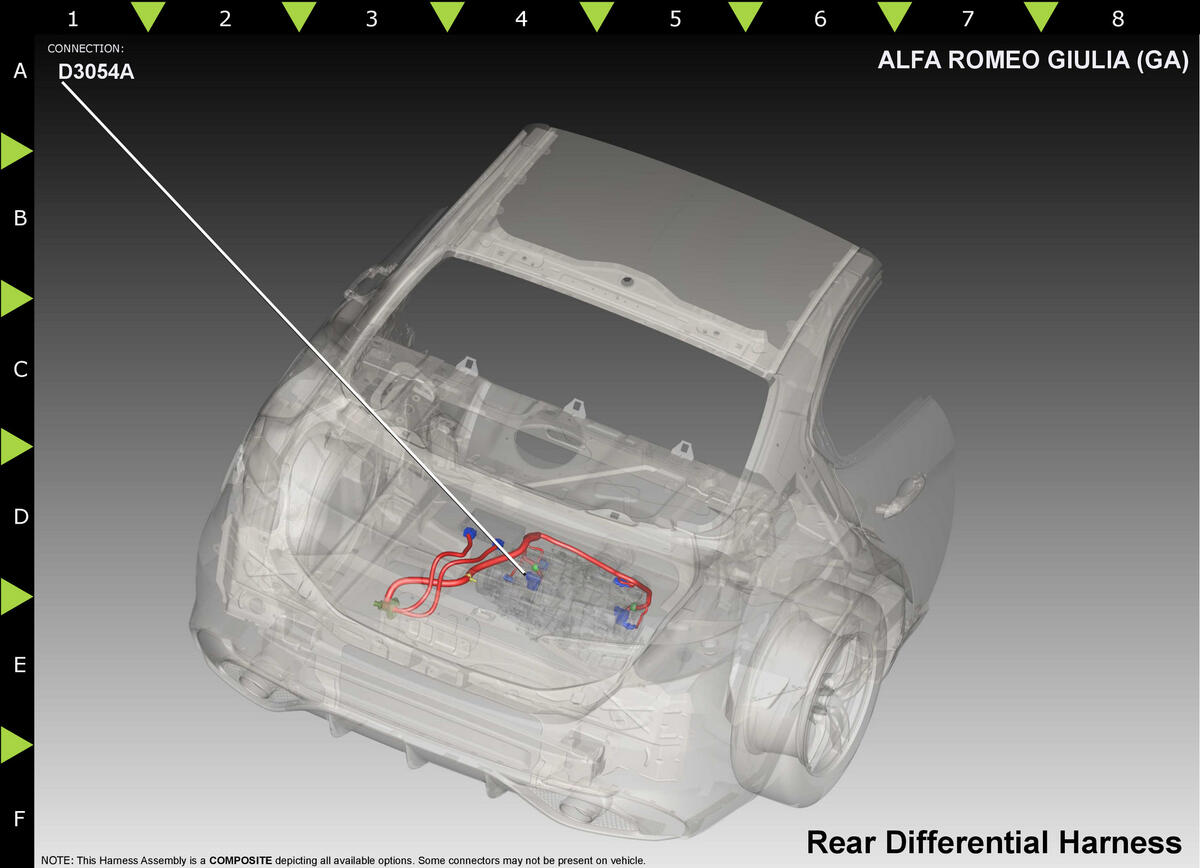

Fig 2: Motor-Torque Rear Differential-Left Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

T430

2.5

LEFT TORQUE MOTOR U SIGNAL

N/A

T432

2.5

LEFT TORQUE MOTOR V SIGNAL

N/A

T431

2.5

LEFT TORQUE MOTOR W SIGNAL

N/A

T436

0.5

LEFT TORQUE MOTOR TEMPERATURE SIGNAL

N/A

T437

0.5

LEFT TORQUE MOTOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
