Port-Charging USB-Front (Standard) Connector End View (D2830A)

Harness-Family: IP

Color: BLACK

Gender: MALE

Part Number: 1/13352/97

Part Description: Not Available

Connector No: D2830A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

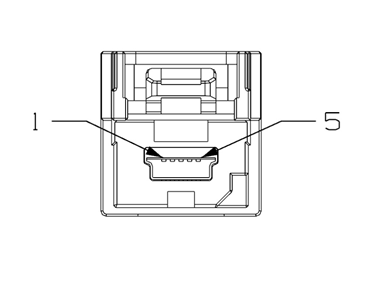

Fig 1: Port-Charging Usb-Front Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Port-Charging Usb-Front Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

X458

5.2

UCI USB RADIO DATA (-)

REMOTE USB

⁽¹⁾	Pins not listed are not used for this connector
