Radio C12 (Standard) Connector End View (D2784P)

Harness-Family: LVDS_Jumper

Color: BORDEAUX

Gender: FEMALE

Part Number: 2177694-4

Part Description: Not Available

Connector No: D2784P

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

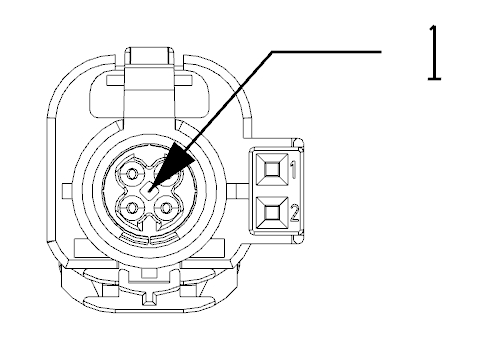

Fig 1: Radio C12 Connector End View (Standard)

GCWD1231439

Courtesy of CHRYSLER

Fig 2: Radio C12 Component Location (Standard)

GCWD1267189

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X911

BU

0.35

VIDEO LVDS DATA 0 (-)

N/A

2

X914

OG

0.35

VIDEO LVDS DATA 1 (+)

N/A

3

X913

GN

0.35

VIDEO LVDS DATA 1 (-)

N/A

4

X912

BN

0.35

VIDEO LVDS DATA 0 (+)

N/A

5

A901

YE

0.5

FUSED B(+)

N/A

6

Z908

BU

0.5

GROUND

N/A

7

X536

NA

0.35

VIDEO SHIELD 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
