S089 (Standard) Connector End View (S089)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S089

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S089 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

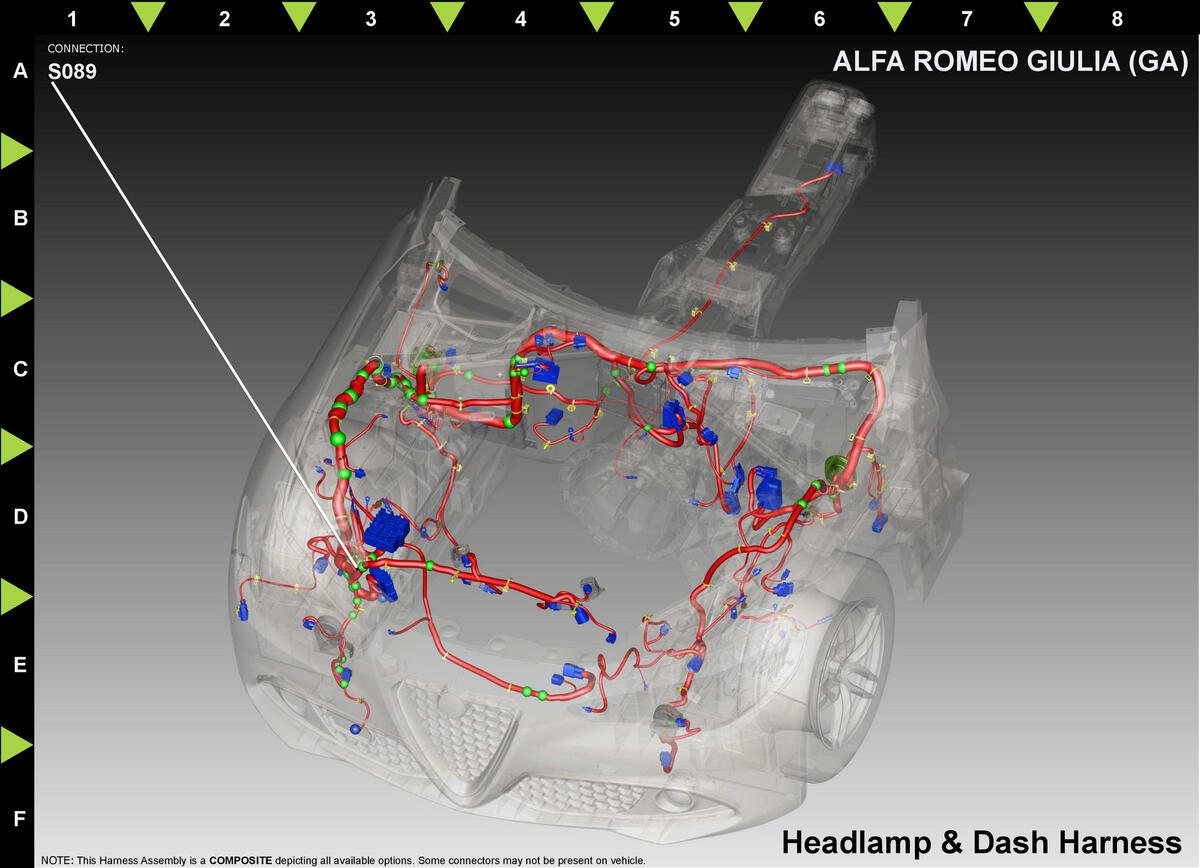

Fig 2: S089 Component Location (Standard)

GCWD1267972

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D11

GN

0.35

CAN C (+)

2.9L

2

D11

GN

0.35

CAN C (+)

2.9L

3

D11

GN

0.35

CAN C (+)

2.9L

⁽¹⁾	Pins not listed are not used for this connector
