S100 (Standard) Connector End View (S100)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S100

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S100 Connector End View (Standard)

Courtesy of CHRYSLER

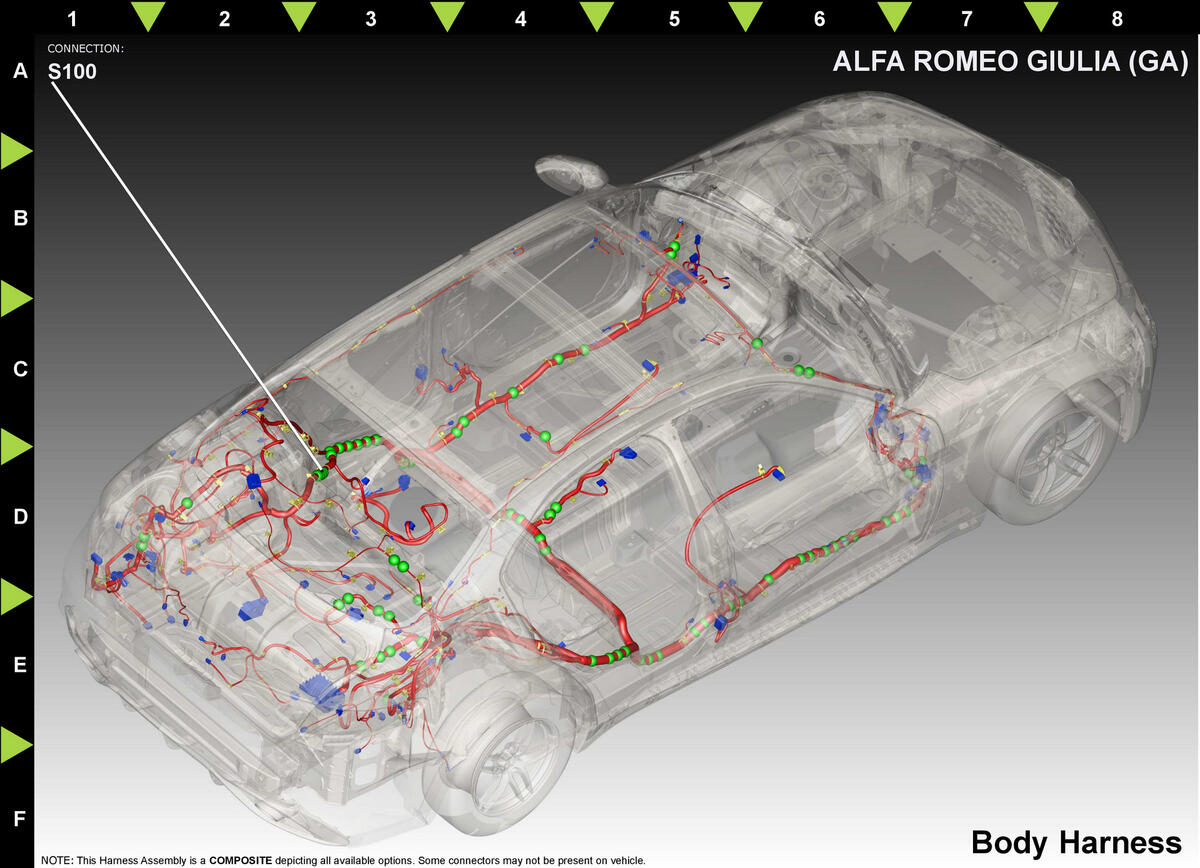

Fig 2: S100 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D11

0.35

CAN C (+)

2.2L EU6 STABILITY CONTROL/ELECTRONIC DIFFERENTIAL

D11

0.35

CAN C (+)

2.2L EU6 STABILITY CONTROL/ELECTRONIC DIFFERENTIAL

D11

0.35

CAN C (+)

2.2L EU6 STABILITY CONTROL/ELECTRONIC DIFFERENTIAL

⁽¹⁾	Pins not listed are not used for this connector
