S112 (Standard) Connector End View (S112)

Harness-Family: Body

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S112

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S112 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

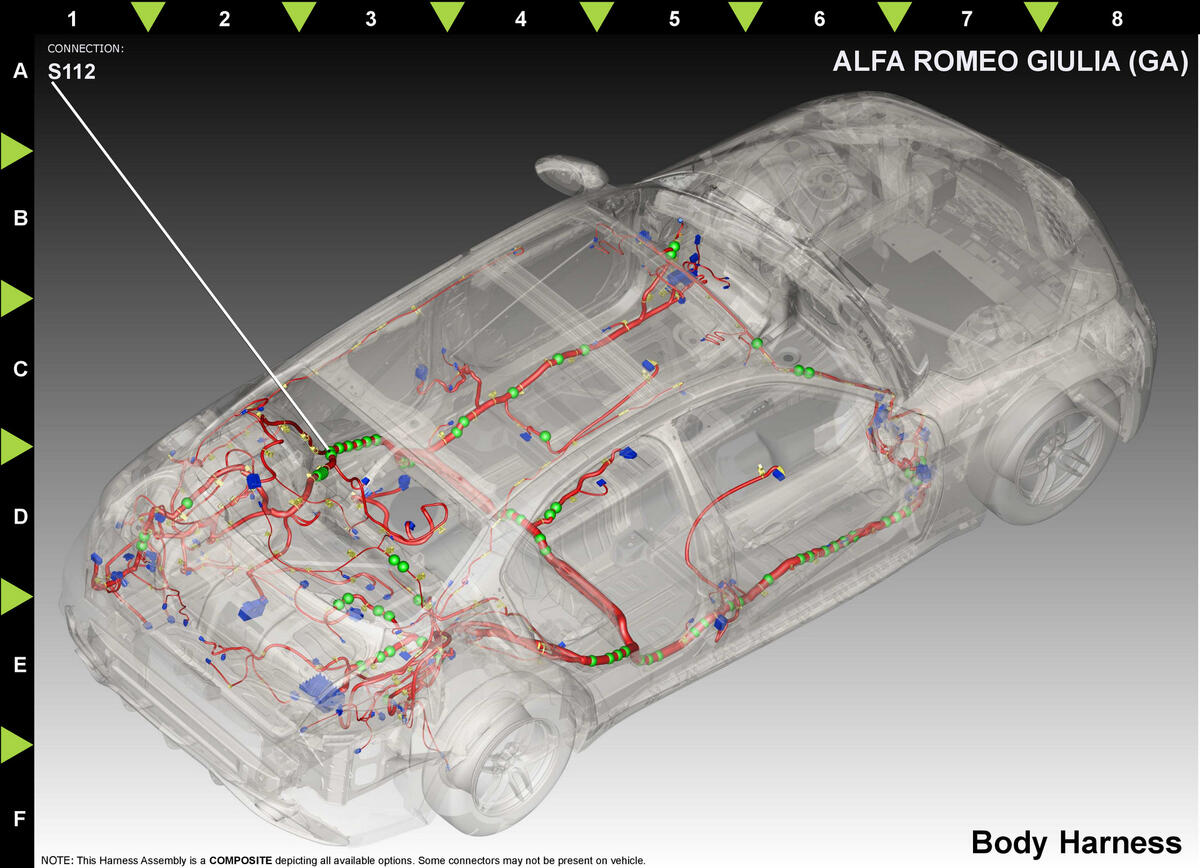

Fig 2: S112 Component Location (Standard)

GCWD1267550

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

D157

DB

0.35

CAN IHS (+)

REAR HEATED SEATS

2

D157

DB

0.35

CAN IHS (+)

REAR HEATED SEATS

3

D157

DB

0.35

CAN IHS (+)

REAR HEATED SEATS

⁽¹⁾	Pins not listed are not used for this connector
