S113 (Standard) Connector End View (S113)

Harness-Family: IP

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S113

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S113 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

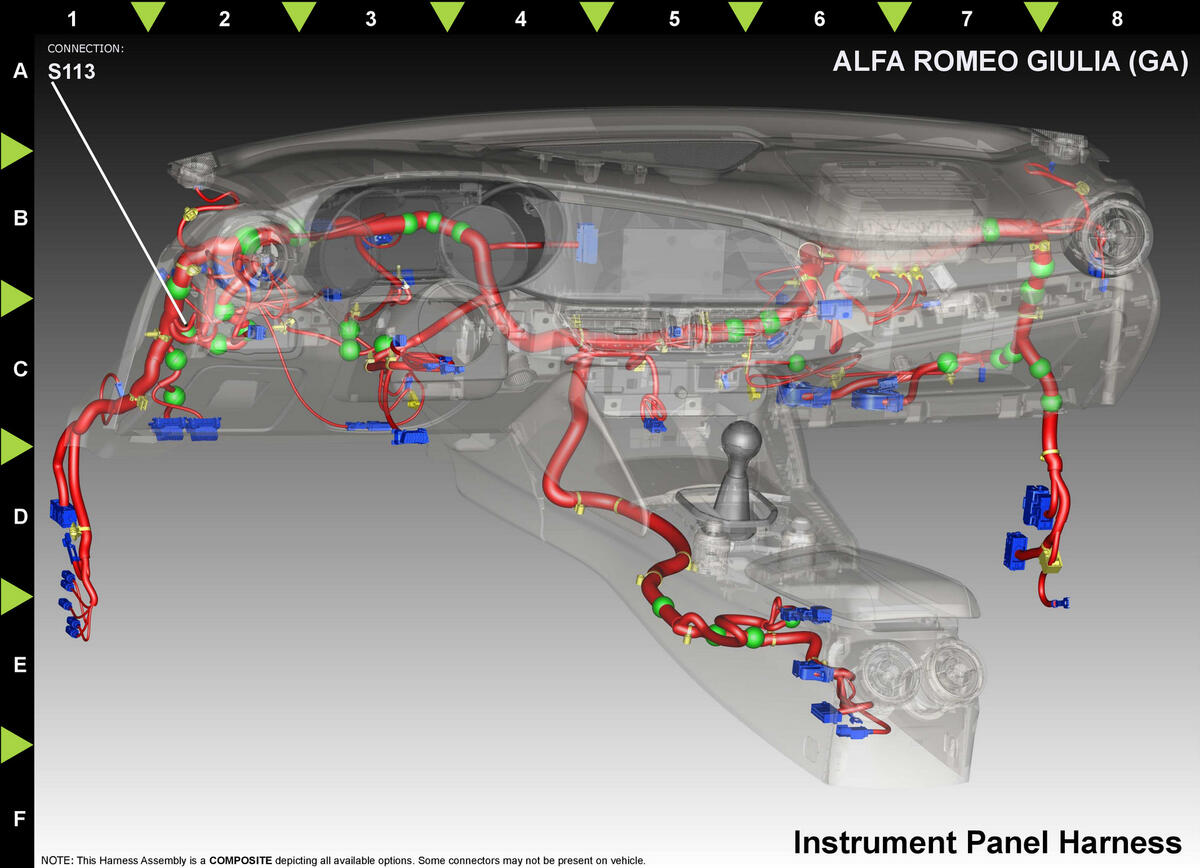

Fig 2: S113 Component Location (Standard)

GCWD1267444

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

X209

YE

0.75

LEFT FRONT SPEAKER (+)

BASE

2

X209

YE

0.75

LEFT FRONT SPEAKER (+)

BASE

3

X209

YE

0.75

LEFT FRONT SPEAKER (+)

BASE

⁽¹⁾	Pins not listed are not used for this connector
