S1148 (Standard) Connector End View (S1148)

Harness-Family: Headlamp_Dash

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S1148

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S1148 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

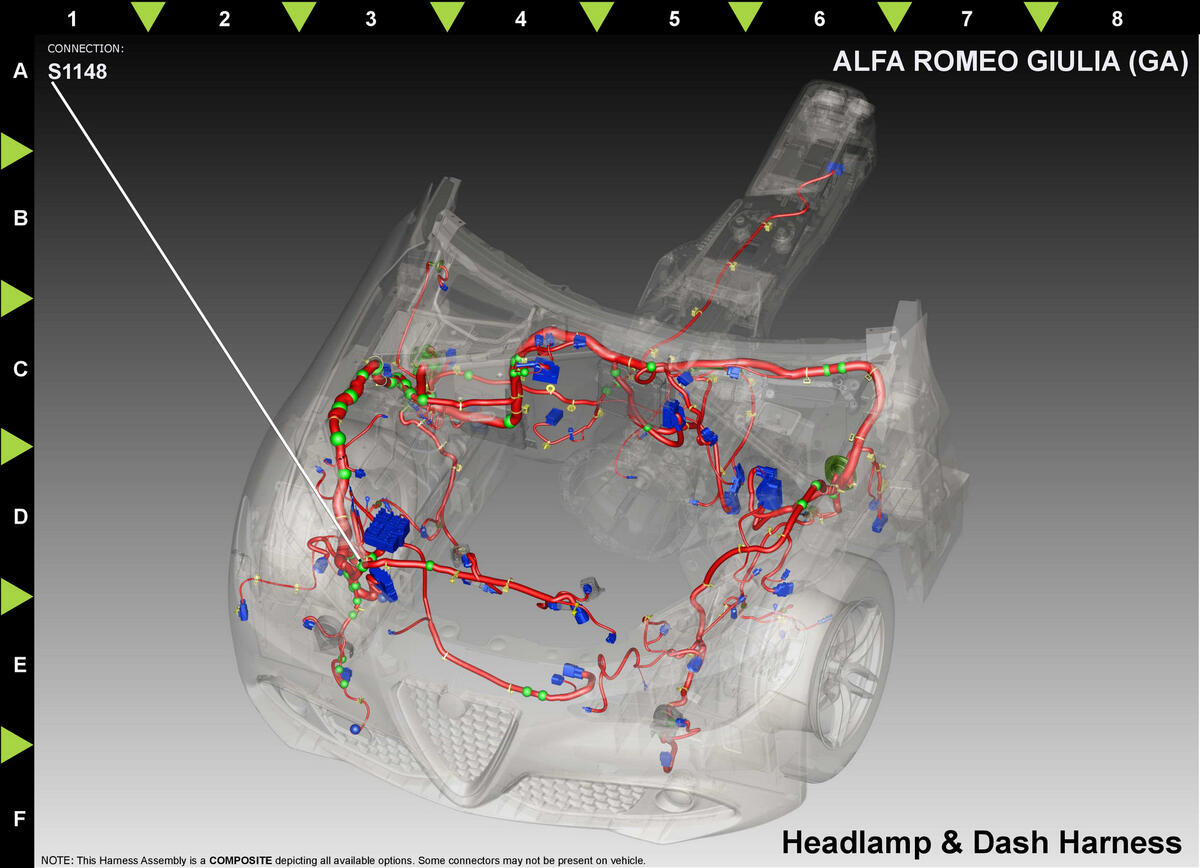

Fig 2: S1148 Component Location (Standard)

GCWD1267583

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A901

RD/DB

4.0

FUSED B(+)

2.9L

2

A901

RD/DB

2.5

FUSED B(+)

2.9L

3

A901

RD/DB

2.5

FUSED B(+)

2.9L

⁽¹⁾	Pins not listed are not used for this connector
