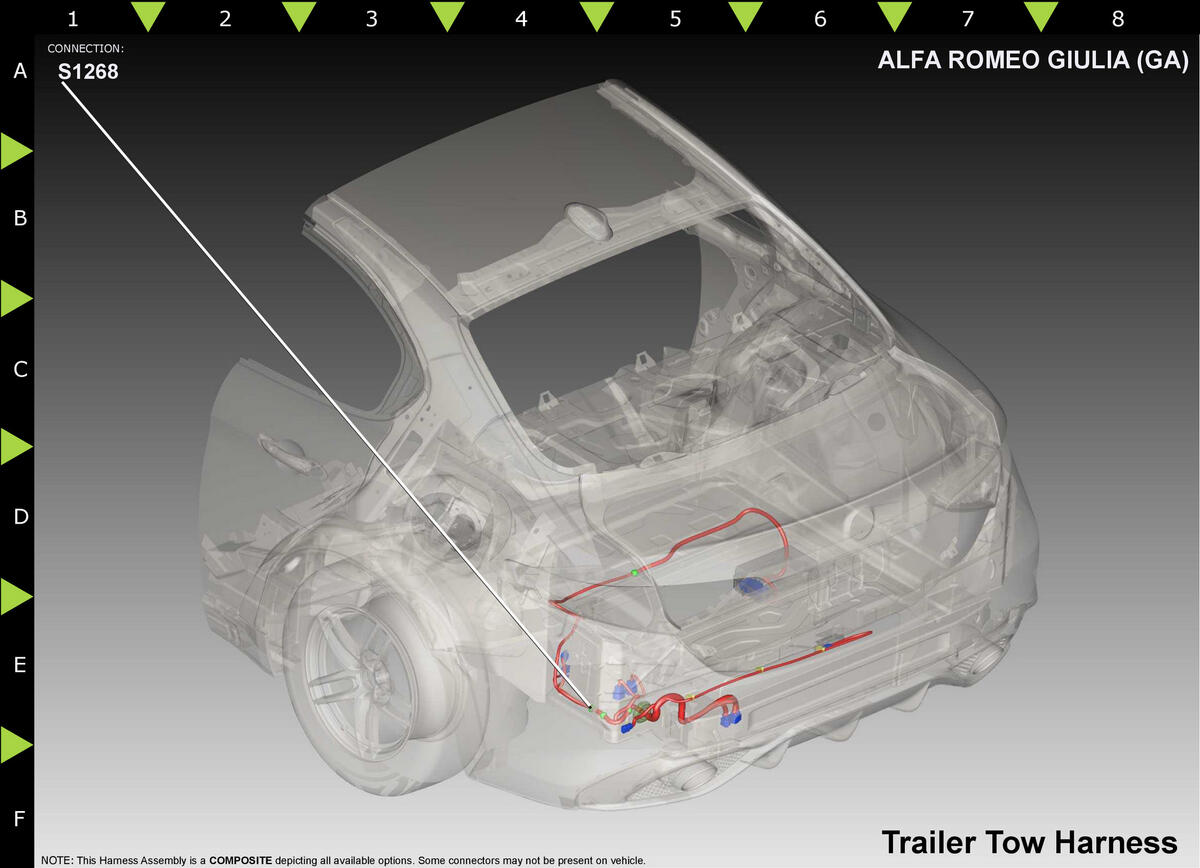

S1268 (Standard) Connector End View (S1268)
Harness-Family: Trailer_Tow
Color: NA
Gender: FEMALE
Part Number: AGV36375
Part Description: Not Available
Connector No: S1268
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z341 | BK | 4.0 | GROUND | TRAILER TOW | ||
| 2 | Z341 | BK | 2.5 | GROUND | TRAILER TOW | ||
| 3 | Z341 | BK | 2.5 | GROUND | TRAILER TOW | ||
| 4 | Z341 | BK | 0.5 | GROUND | TRAILER TOW | ||
| 5 | Z341 | BK | 1.5 | GROUND | TRAILER TOW | ||
| 6 | Z341 | BK | 1.5 | GROUND | TRAILER TOW | ||
| 7 | Z341 | BK | 2.5 | GROUND | TRAILER TOW | ||
|
|||||||
