S190 (Standard) Connector End View (S190)

Harness-Family: Door_Right_Rear_Jumper

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S190

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: S190 Connector End View (Standard)

GCWD1006420

Courtesy of CHRYSLER

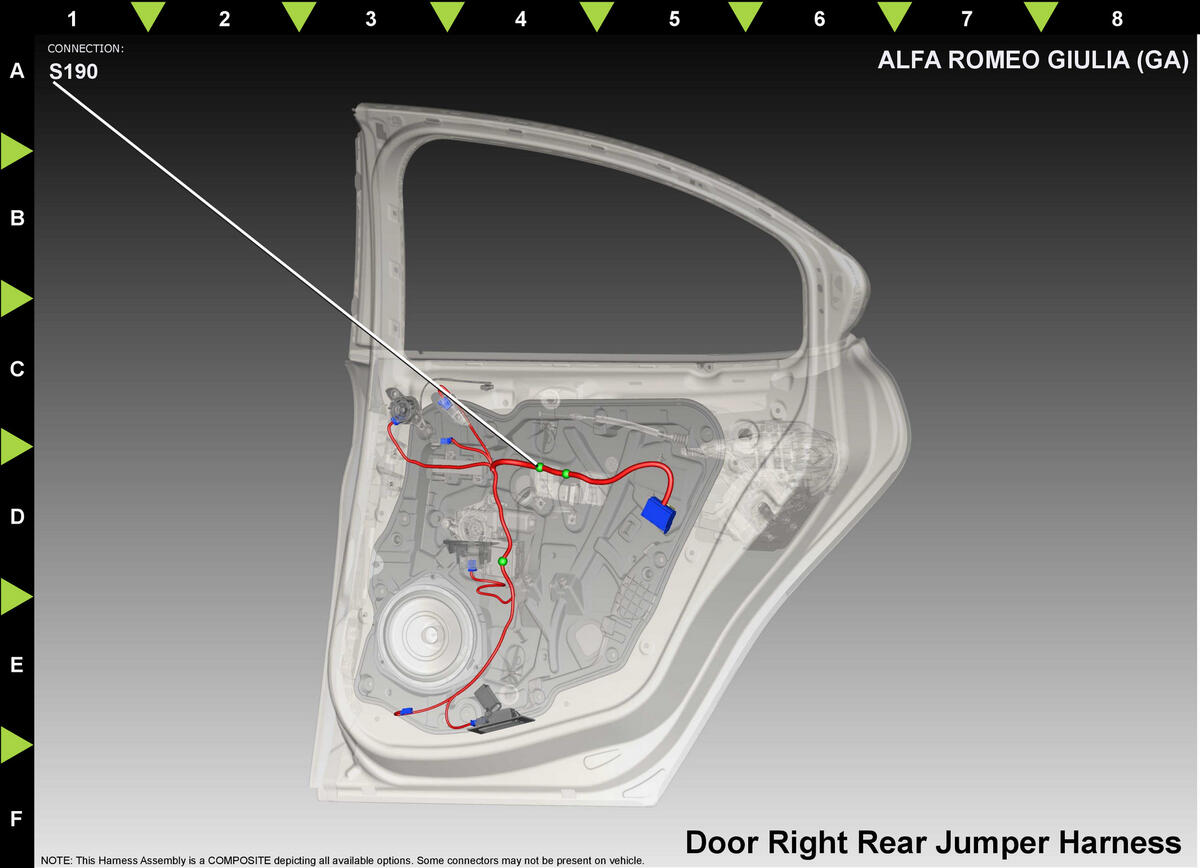

Fig 2: S190 Component Location (Standard)

GCWD1267863

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

Z916

WH/BK

0.5

GROUND

PREMIUM

2

Z916

WH/BK

0.5

GROUND

PREMIUM

3

Z916

WH/BK

0.5

GROUND

PREMIUM

⁽¹⁾	Pins not listed are not used for this connector
